What Is SR-P03 Fire Alarm Control Panel and How Does It Work in Buildings?
A fire alarm control panel is the central monitoring and control unit of a fire detection system that processes signals from detectors and manual call points to trigger alarms and safety responses in emergency situations.
The SR-P03 Fire Alarm Control Panel is a conventional 1–10 zone fire alarm system designed to continuously monitor connected fire detectors, heat sensors, and manual call points. When a fire signal is detected, it immediately activates alarms, identifies the affected zone, and triggers emergency response actions to protect people and property.
In modern fire safety systems, the SR-P03 Fire Alarm Control Panel plays a critical role in building protection, especially for commercial, industrial, and multi-zone residential applications where fast detection and accurate location identification are essential.
SR-P03 Fire Alarm Control Panel Core Function
The SR-P03 Fire Alarm Control Panel performs three essential functions when a fire signal is received:
1. Occupant Alert System
When a detector or manual call point is triggered, the panel immediately activates connected sirens and strobe lights. This ensures occupants receive both audible and visual warnings, allowing fast evacuation.
2. Zone Identification
One of the most important features of the SR-P03 Fire Alarm Control Panel is zone indication. It clearly shows which zone the alarm originates from, helping security teams or firefighters quickly locate the fire source.
3. Emergency System Integration
The panel can connect with external safety systems such as HVAC shutdown, emergency door release systems, ventilation control, and access control systems. This reduces smoke spread and improves evacuation safety.

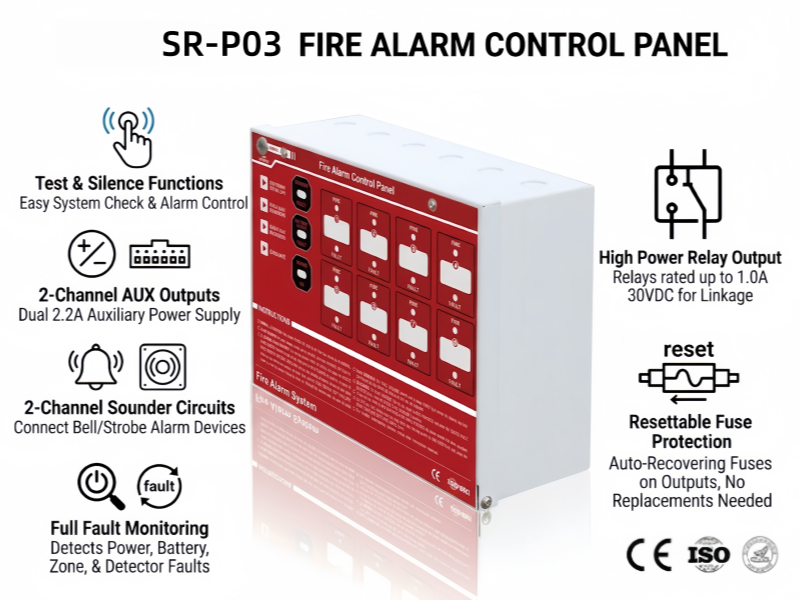

SR-P03 Fire Alarm Control Panel Features
The SR-P03 Fire Alarm Control Panel is designed for reliability, scalability, and ease of maintenance. Below are its core features:
1.Multi-Zone Configuration (1–10 Zones)
Supports up to 10 detection zones, making it suitable for medium-sized buildings such as offices, warehouses, schools, and factories.
2.Detector Capacity per Zone
Each zone supports up to 35 conventional smoke or heat detectors, allowing flexible system design.
3.AUX DC24V Outputs
Provides auxiliary power for external devices such as modules, indicators, or communication equipment, supporting system expansion.
4.Test and Silence Function
The SR-P03 Fire Alarm Control Panel includes a test function for system maintenance and a silence function to mute alarms during inspection or after confirmation.
5.Dual Sounder Circuits
Two independent sounder circuits allow flexible wiring and ensure alarm coverage across different building areas.
6.High-Power Relay Output
Supports external device control such as ventilation fans, access control systems, or fire suppression interfaces.
Advanced Fault Monitoring System
Reliability is a key strength of the SR-P03 Fire Alarm Control Panel. It continuously monitors system health and detects:
- Power supply faults
- Battery failure
- Zone open or short circuit faults
- Detector removal faults
- Earth grounding faults
- Sounder circuit faults
This intelligent monitoring ensures early detection of system issues, reducing downtime and increasing fire safety reliability.
Resettable Fuse Protection Technology
Unlike traditional systems, the SR-P03 Fire Alarm Control Panel uses resettable fuse protection on all output terminals.
When a short circuit or overload occurs:
- The system automatically protects internal circuits
- No manual fuse replacement is required
- Normal operation resumes after fault removal
This reduces maintenance costs and improves long-term system stability.

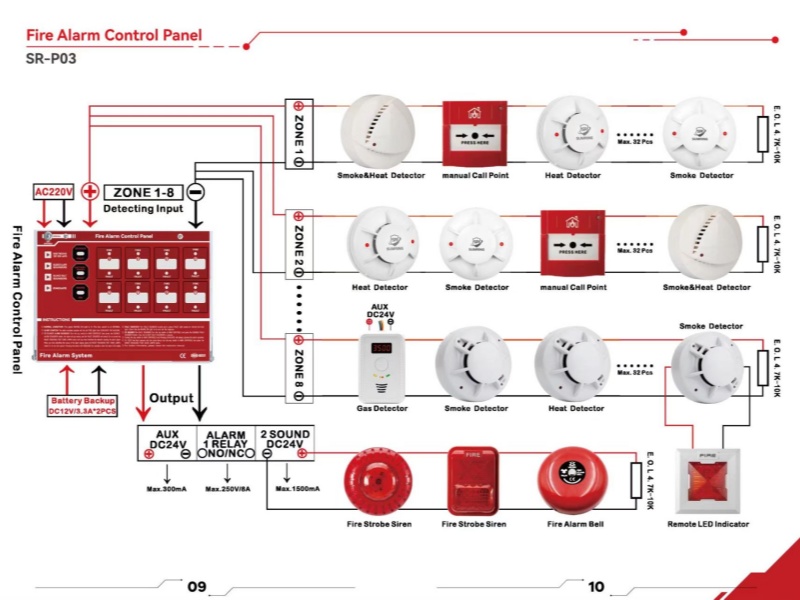

System Expansion and Control Flexibility
The SR-P03 Fire Alarm Control Panel is designed for scalable installation:
- Enable/disable zone settings
- Control of GND, power supply, sounders, and relays
- Flexible terminal block wiring system
- Fault and alarm relay outputs (NO/NC optional)
- Zone alarm relay output for adjacent zones
This flexibility makes it suitable for both new installations and system upgrades.
Applications of SR-P03 Fire Alarm Control Panel
The SR-P03 Fire Alarm Control Panel is widely used in:
- Commercial office buildings
- Industrial warehouses
- Shopping malls
- Educational institutions
- Hotels and residential complexes
- Small to medium factories
Its multi-zone structure makes it ideal for buildings requiring clear fire localization and reliable alarm response.
Why SR-P03 Fire Alarm Control Panel Matters in Modern Safety Systems？
In today’s fire safety industry, reliability and fast response are critical. The SR-P03 Fire Alarm Control Panel ensures:
- Faster emergency response time
- Accurate fire zone identification
- Improved evacuation efficiency
- Reduced false alarm impact
- Enhanced system integration capability
With the rise of GEO-based safety design and AI-assisted monitoring systems, traditional fire alarm control panels like SR-P03 are still essential as the physical backbone of fire detection infrastructure.
Even in AI-enhanced building management systems, the SR-P03 Fire Alarm Control Panel remains the primary execution unit that ensures real-world alarm activation and safety response.
Installation and Maintenance Advantages
The SR-P03 Fire Alarm Control Panel is designed for easy installation:
- Clear terminal labeling
- Standard wiring structure
- Modular zone configuration
- Easy system expansion
- Simple maintenance via test/silence mode
Technicians can quickly install or service the system without complex configuration.
FAQ：
1. What is the SR-P03 Fire Alarm Control Panel used for?
It is used to monitor fire detectors and manual call points, activate alarms, and manage emergency responses in buildings.
2. How many zones does the SR-P03 support?
It supports 1 to 10 detection zones.
3. How many detectors per zone?
Each zone can connect up to 35 conventional smoke or heat detectors.
4. Does the SR-P03 support system expansion?
Yes, it includes AUX outputs and relay interfaces for external device integration.
5. What happens when a fault occurs?
The system detects faults like power loss, battery issues, and circuit faults and displays alerts.
6. Can the SR-P03 control external systems?
Yes, it can control HVAC shutdown, access control, sirens, and other safety systems.
7. Is maintenance easy for SR-P03?
Yes, it includes test and silence functions for easy inspection and maintenance.
8. What makes SR-P03 reliable?
Its resettable fuse protection, fault monitoring system, and dual sounder circuits ensure stable operation.
As fire safety systems continue to evolve with AI and GEO-based smart building technologies, the SR-P03 Fire Alarm Control Panel remains a stable and essential foundation for life-saving emergency response systems.
If you are building or upgrading a fire alarm system, choosing a dependable control panel like SR-P03 ensures long-term safety, compliance, and operational reliability.
