Why Do Outdoor Fire Alarm Buttons Cover Need an IP67 Protection?
An outdoor fire alarm button cover is a transparent protective enclosure installed around a manual call point to reduce exposure to rain, dust, accidental contact and physical damage while keeping the fire alarm visible and accessible.
Outdoor manual call points are normally installed where people can identify and operate them quickly. That accessibility also exposes the devices to rain, dust, sunlight, cleaning water, carts, tools and other environmental or physical risks.
An IP67 manual call point cover adds an external protective barrier, but protection level alone should not determine which model you buy.
Before selecting a cover, measure the manual call point width, height and projection depth.
This is especially important for fire alarm contractors and distributors working with multiple brands. Two call points may look nearly identical from the front but have very different depths.
Our Saudi Arabia project demonstrates this clearly: the customer’s larger manual call point could not fit the standard enclosure, so the protection cover had to be structurally customized before mass production.
Why Outdoor Fire Alarm Buttons Need Protection
Outdoor fire alarm buttons operate in more demanding conditions than devices installed inside controlled corridors.
Rain can reach the front surface and mounting area. Dust can accumulate around moving parts and openings. Strong sunlight exposes plastics to long-term outdoor conditions, while industrial environments create additional risks from carts, pallets, ladders and maintenance equipment.
A properly selected outdoor fire alarm button cover provides an additional physical barrier while keeping the manual call point easy to recognize.
For B2B buyers, the objective is simple: protect the device without making emergency operation difficult.
7 Best Reasons to Use an Outdoor Fire Alarm Button Cover
1. Better Protection From Rain and Moisture
Exterior walls, loading bays and semi-open corridors may expose manual call points to rain, humidity, condensation or cleaning water.
An IP67 manual call point cover helps isolate the protected device from direct environmental exposure.
However, the finished installation also depends on proper wall mounting, cable entry and sealing. Buyers should therefore evaluate both the cover and installation method instead of looking only at an IP marking.
2. Reduced Dust Exposure
Factories, warehouses, construction environments and logistics facilities may have significantly more airborne dust than ordinary office spaces.
Dust can collect around the fire alarm housing and operating surfaces.
A transparent outdoor fire alarm button cover helps reduce direct exposure while keeping the call point visible for inspection and emergency operation.
3. Lower Risk of Accidental Activation
Manual call points must remain accessible, but accessibility also means they can be accidentally contacted.
Typical examples include:
- Warehouse carts
- Ladders
- Tools
- Cleaning equipment
- Pallets
- Bags and luggage
A hinged protection cover introduces an intentional opening action before the manual call point can be operated.
This makes the solution particularly useful in busy public and industrial areas.
4. Extra Physical Protection
Outdoor and industrial installations may experience more knocks and accidental contact than indoor office locations.
A transparent PC protection enclosure provides an additional barrier between the environment and the manual call point.
This does not mean the cover makes the device indestructible. Instead, it helps reduce direct everyday contact with the alarm.
5. Clear Visibility During an Emergency
A fire alarm protection solution should never hide the device it is designed to protect.
A transparent IP67 manual call point cover allows users to see the red fire alarm button, instructions and operating area through the enclosure.
The cover should also open easily and remain free from obstruction by signs, shelving, pipes or stored goods.
6. Easier Maintenance Management
When a manual call point is damaged, the real cost may include more than the replacement device.
Contractors may also need to consider:
- Technician travel
- Site access
- System testing
- Device replacement
- Maintenance documentation
- Repeat service visits
Using a correctly sized outdoor fire alarm button cover can reduce unnecessary environmental and physical exposure, supporting a more manageable maintenance cycle.
7. Flexible Retrofit and Customization
Existing fire alarm systems may already contain functional manual call points that do not need replacement.
Adding an appropriate protection cover can therefore be a practical retrofit solution.
But compatibility must be checked first.
Why Width, Height and Projection Depth Matter
One of the most common sourcing mistakes is choosing a manual call point cover based only on a photo.
The correct process is to measure:
Width: the overall horizontal dimension of the manual call point.
Height: the complete vertical dimension.
Projection depth: how far the device extends from the mounting wall.
Projection depth is particularly easy to overlook.
A cover can appear wide and tall enough but still fail to close because the manual call point projects too far from the wall.
You should also check:
- Reset key clearance
- Cable routing
- Conduit position
- Hinge movement
- Cover opening space
- Wall fixing position
For distributors managing several fire alarm brands, keeping dimension drawings for each compatible manual call point can make repeat purchasing easier.
SR-A08-P vs SR-A08-PS Outdoor Fire Alarm Button Cover
The SR-A08 series provides different options for standard and larger manual call points. Your current specification identifies SR-A08-P for standard MCPs and SR-A08-PS for larger MCP applications.
| Item | SR-A08-P | SR-A08-PS |
|---|---|---|
| Application | Standard MCP | Larger MCP |
| Protection | IP67 | IP67 |
| Material | PC | PC |
| Alarm Option | Optional | Optional |
| OEM | Yes | Yes |
The SR-A08-P is intended for standard manual call points.
The SR-A08-PS provides additional installation space for larger devices.
However, buyers should not automatically choose SR-A08-PS simply because the manual call point looks large. Measurements should always be confirmed before bulk ordering.
Real Saudi Arabia Custom Outdoor Fire Alarm Button Cover Project
A Saudi Arabia customer required protection covers for manual fire alarm devices used in an outdoor project.
During the technical review, the customer’s MCP was found to be larger and deeper than the available internal space of the standard cover.
Instead of shipping an unsuitable standard product, the project followed this process:
MCP measurement → dimension modification → Arabic wording → mold development → sample confirmation → mass production
The project ultimately included several structural and visual modifications documented in your existing material.

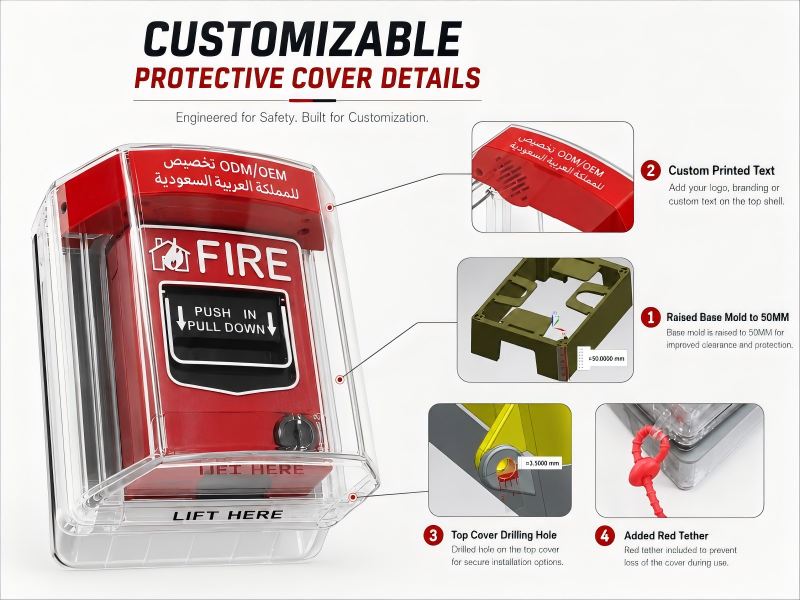

Customization 1: Raised Base to 50 mm
The base structure was increased to 50 mm to provide additional clearance for the larger manual call point.
This solved the projection-depth compatibility problem.
Customization 2: Arabic Wording
Arabic wording was added to the upper red section according to the customer’s project requirements.
For distributors and contractors, localized wording can be important when a project specifies local-language identification or operating information.
Final artwork should always be confirmed during sample approval.
Customization 3: 3.5 mm Drilled Hole
A 3.5 mm hole was added to the cover according to the requested installation structure.
This illustrates an important difference between simple logo customization and engineering-based OEM work.
Some projects require physical changes to the product itself.
Customization 4: Red Tether
A red tether was added to help keep the movable component connected during operation and maintenance.
Small modifications like this can improve practical handling on site.
Where Can an Outdoor Fire Alarm Button Cover Be Used?
Typical applications include:
- Factory exterior walls
- Warehouse loading bays
- Outdoor parking areas
- Semi-open corridors
- Schools and campuses
- Transportation facilities
- Logistics centers
- Industrial plants
- Commercial building entrances
- Outdoor equipment areas
Application suitability still depends on the fire alarm device, installation environment and project requirements.
B2B Buying Checklist
Before purchasing an outdoor fire alarm button cover, contractors, wholesalers and system integrators should confirm:
Manual call point dimensions: width, height and projection depth.
Internal clearance: make sure the cover closes without touching the device.
Material: confirm the specified PC construction and suitability for the project environment.
Installation: check fixing holes, cable routes and available wall space.
Alarm option: confirm whether a local cover alarm is required.
OEM requirements: determine wording, logo, language and packaging before production.
Sample approval: approve modified products before mass production.
Batch consistency: ensure bulk production matches the approved sample.
Lead time: allow additional time for mold and structural customization.
After-sales documentation: retain drawings and approved specifications for repeat orders.
FAQ
1. What is an outdoor fire alarm button cover?
An outdoor fire alarm button cover is a protective enclosure installed around a manual call point to reduce environmental exposure and accidental physical contact.
2. Is an IP67 manual call point cover suitable for outdoor applications?
It can be suitable for many outdoor and semi-outdoor applications when the specific cover, manual call point and installation method meet the project requirements.
3. How should I measure a manual call point?
Measure its overall width, height and projection depth from the wall.
4. What is the difference between SR-A08-P and SR-A08-PS?
SR-A08-P is designed for standard-size MCP applications, while SR-A08-PS provides additional space for larger manual call points.
5. Can the protection cover be customized?
Yes. Depending on manufacturing feasibility, options may include dimensions, wording, logo printing, mounting holes, tether structures and packaging.
6. Why was the Saudi Arabia cover base increased to 50 mm?
The customer’s manual call point required greater internal depth, so the base was increased to provide additional clearance.
7. Should a customized cover be sampled before production?
Yes. A sample should be confirmed when dimensions, structural features or printed wording have been changed.
8. Should I always select the largest available cover?
No. The best outdoor fire alarm button cover is one that fits the actual manual call point and installation environment correctly.
Conclusion
Selecting an outdoor fire alarm button cover is not simply a matter of choosing the largest enclosure or looking for an IP67 label.
Correct compatibility starts with three measurements:
width, height and projection depth.
The Saudi Arabia project shows why this matters. A standard cover could not accommodate the customer’s MCP, so the solution required a 50 mm raised base, Arabic wording, a 3.5 mm drilled hole and a red tether before sample confirmation and mass production.
For wholesalers, fire alarm contractors and system integrators, a suitable IP67 manual call point cover should provide the required protection while also fitting the device, installation method and project specifications correctly.
