General Details

PIR Detector:

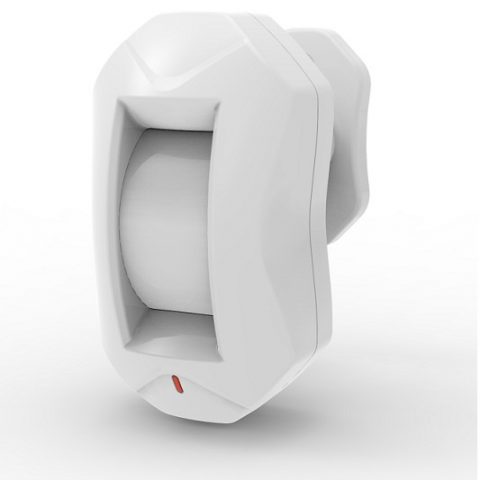

SR-615R Wireless Wide Angle PIR Detector

Main features:

wireless transmitting digital signal
low power indication
ASIC adopted
Automatic temperature compensation
Low power consumption, long battery life
SMT adopted, anti-RFI & anti-EMI


Technological details

Technical specification:

Operating voltage: 9V battery
Standby current: less than 25uA
Alarm current: less than 15mA
Operating temp. :-10 to +50 degrees
Installation mode: wall mounted
Installation height: about 2m

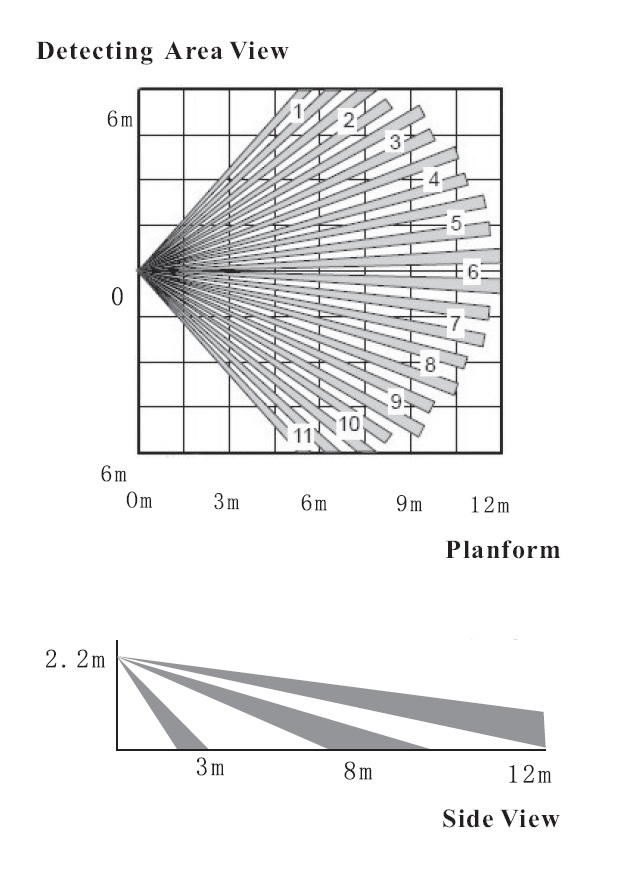

Detecting distance: 12m
Detecting angle: 110 degrees
Transmitting freq.: 315MHz or 433MHz
Transmitting distance: more than 200m (in the open area)
Dimension: 107*59*45mm
