SR-903-2 Kitchen Cooking DC9-24V Natural Gas & LPG Leak Detector

DC 9–24V Natural Gas LPG Leak Detector with relay output, ≥85dB sound alarm, LED warning and MCU self-check.

CONTACT US
Description
Order

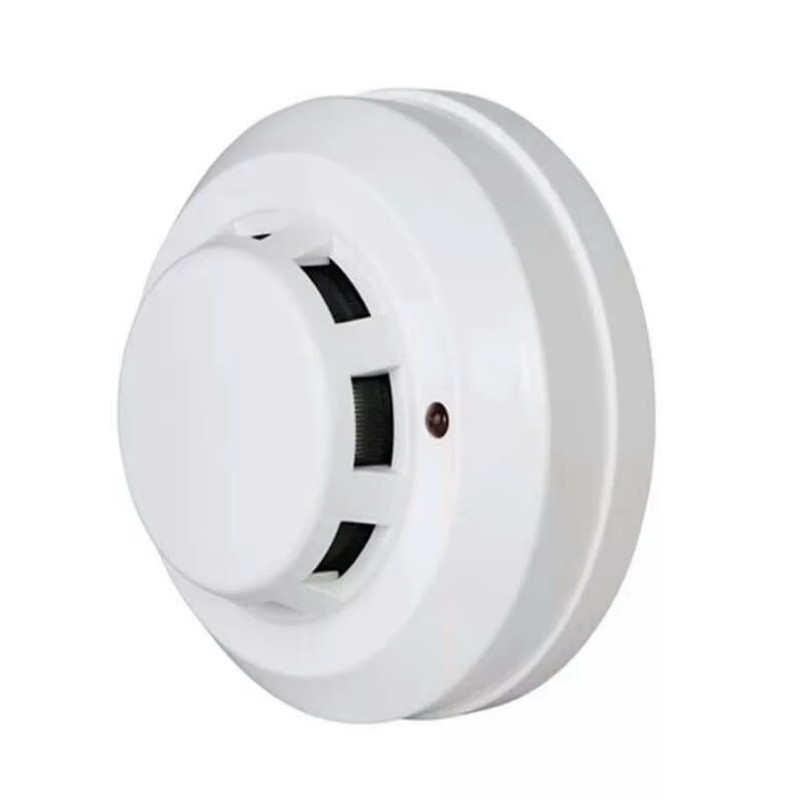

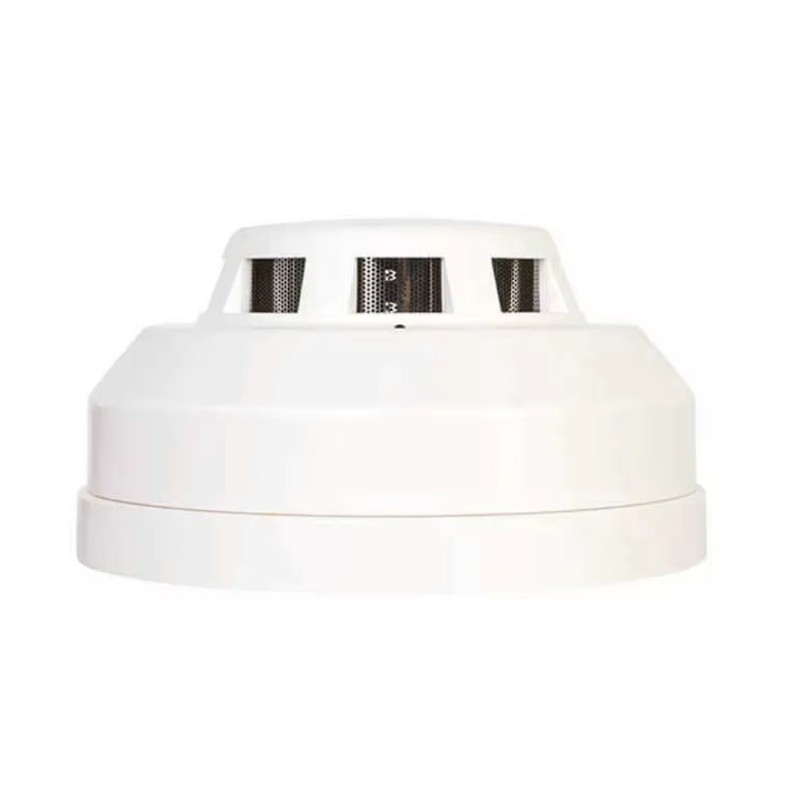

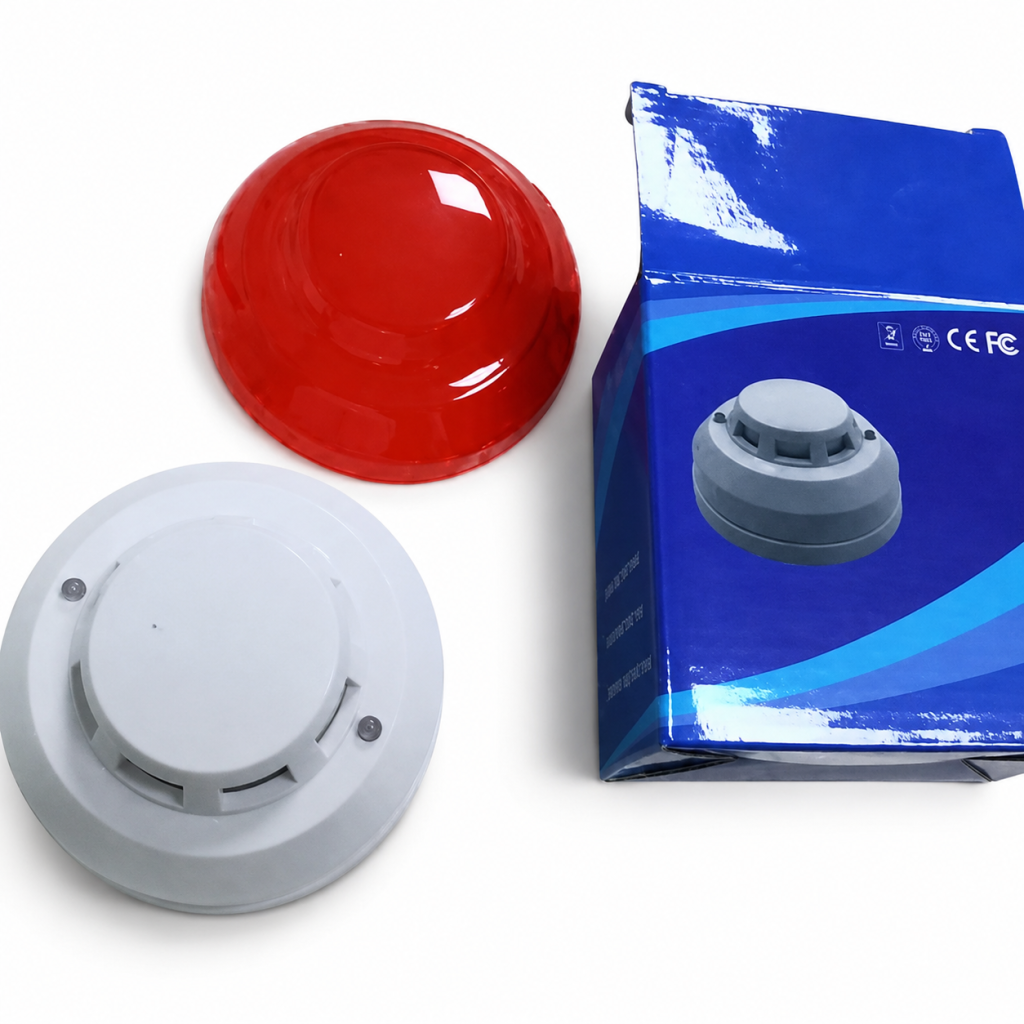

SR-903-2 Natural Gas LPG Leak Detector for Wired Alarm Systems

The SR-903-2 Natural Gas LPG Leak Detector is a wired combustible gas alarm designed for natural gas and LPG monitoring. It operates on DC 9–24V and provides relay output, an audible alarm, and LED warnings when a gas alarm condition is reached.

This detector uses MCU signal processing and supports automatic alarm reset and fault indication. Its sound level is rated at 85 dB or higher at 1 meter, while the published alarm threshold is 10% ±5% LEL.

With a compact 104 × 51 mm housing, the SR-903-2 is an option for residential and suitable commercial gas safety projects.

SUMRING offers OEM and ODM cooperation for distributors, engineering contractors, and bulk buyers.

SR-903-2 Natural Gas LPG Leak Detector Features

  • Natural Gas and LPG Monitoring: Designed for combustible gas detection. Confirm the target-gas calibration before ordering.
  • DC 9–24V Power Supply: Supports compatible low-voltage systems, including 12V and 24V installations.
  • Relay Alarm Output: Provides a wired signal interface for compatible alarm panels and external control equipment.
  • ≥85 dB Audible Warning: Activates a clear sound alarm when the configured gas threshold is reached.

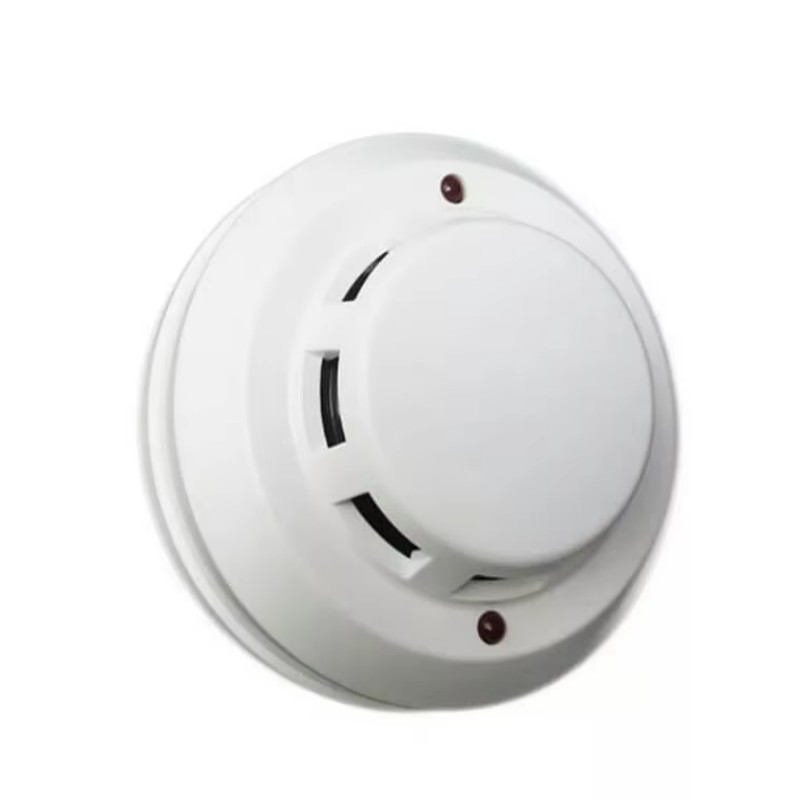

  • LED Alarm Indicator: Provides a visible warning during gas alarm conditions.
  • MCU Signal Processing: Monitors sensor signals and supports alarm management.
  • Fault Self-Check: Provides malfunction indication to support routine equipment checks.
  • Automatic Alarm Reset: Supports a return to normal monitoring when the alarm condition clears.
  • 104 × 51 mm Housing: Offers a different enclosure size from the SR-903 model.

Technical Specifications

Parameter Specification Parameter Specification
Model Number SR-903-2 Brand SUMRING
Product Type Natural Gas LPG Leak Detector Detecting Gas Natural Gas & LPG
Power Supply DC 9–24V Alarm Level 10% ±5% LEL
Standby Current Less Than 90 mA Alarm Current Less Than 100 mA
Alarm Output Relay, Sound & LED Sound Level ≥85 dB at 1 m
Control System MCU Processing Fault Self-Check Supported

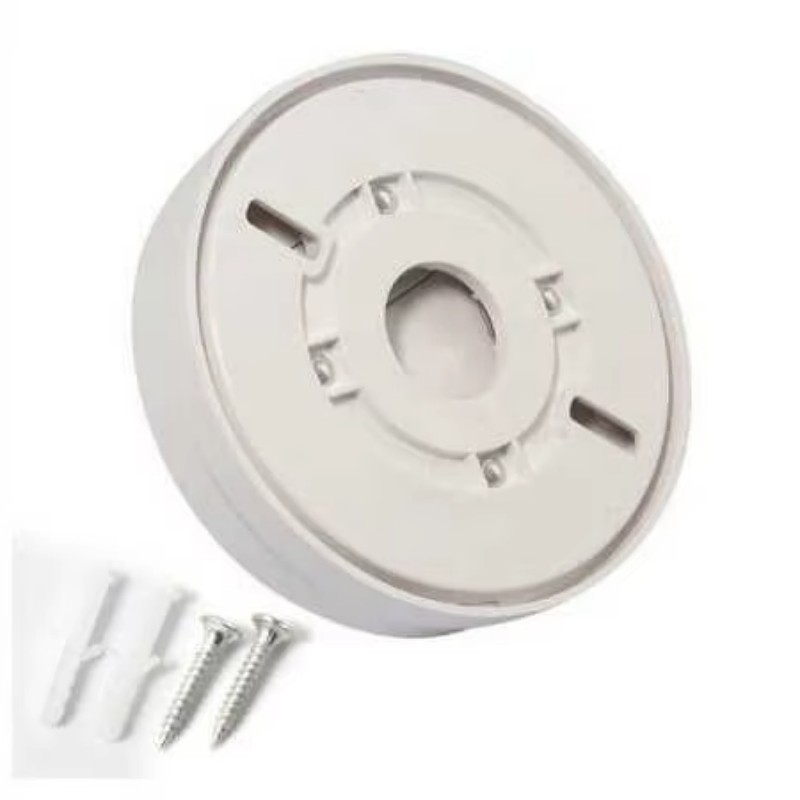

Automatic Reset Supported Listed Installation Ceiling Mounted
Working Temperature −10°C to +50°C Relative Humidity ≤95% RH, Non-condensing
Dimensions 104 × 51 mm Supply Options OEM / ODM on Request

Technical note: Confirm the gas-specific calibration, relay contact ratings, wiring configuration, and installation position before ordering. The correct mounting location depends on the target gas and the approved product instructions.

SR-903-2 Natural Gas LPG Leak Detector

How Does the SR-903-2 Natural Gas LPG Leak Detector Work?

The SR-903-2 Natural Gas LPG Leak Detector monitors combustible gas in the surrounding air and provides local warnings and a relay alarm signal.

Step 1: DC Power Supply

The detector uses an external DC 9–24V power source.

Installers should confirm the supply voltage, current capacity, and wiring requirements before connecting the device.

Step 2: Gas Monitoring

The sensing element responds to the selected combustible gas in the surrounding air.

Detection performance depends on the target gas and the calibration of the supplied version.

Step 3: MCU Signal Processing

The internal MCU processes the sensor signal and evaluates the programmed alarm condition.

The published alarm level is 10% ±5% LEL. Buyers should confirm how this specification applies to the selected gas configuration.

Step 4: Sound, LED, and Relay Alarm

When an alarm condition is detected, the device activates its audible warning and flashing LED.

The relay output provides a signal interface for compatible external control equipment.

Connections to gas valves, ventilation systems, or alarm panels require the correct electrical interface and wiring design.

Step 5: Fault Indication and Reset

The detector supports malfunction indication and automatic alarm reset.

When the gas alarm condition clears, the device can return to normal monitoring. Any gas alarm must still be investigated before the area is used again.

For more technical information, read our combustible gas leak detector selection guide.

Applications and Selection Advice

The SR-903-2 Natural Gas LPG Leak Detector can be considered for suitable indoor gas monitoring applications, such as residential kitchens, apartments, boiler rooms, and commercial kitchens.

Its low-voltage power supply and relay output are useful selection features for projects that require integration with compatible external control equipment.

Before ordering, confirm the target gas, alarm threshold, mounting location, output configuration, and required local approvals.

For projects requiring a smaller housing or a listed low-power configuration, compare the SR-903 Gas Leak Detector.

Need a different housing size for your gas detection project? Compare the SR-903-2 Natural Gas LPG Leak Detector. It offers DC 9–24V power, relay output, audible and LED warnings, and a 104 × 51 mm housing.

You can also explore the SUMRING combustible gas detector range for alternative power and output options.

For independent guidance on gas detection equipment selection and maintenance, see the UK HSE guidance on leak and gas detection.

FAQs

1. Can the SR-903-2 detect both natural gas and LPG?

The SR-903-2 is listed for natural gas and LPG monitoring. Buyers should confirm the calibration and detection performance of the ordered configuration. Natural gas and LPG also have different installation requirements.

2. Does the SR-903-2 support DC 12V and 24V systems?

Yes. Its operating voltage range is DC 9–24V, which includes DC 12V and DC 24V. The external supply must meet the detector’s voltage and current requirements.

3. Can this detector connect to an alarm panel or solenoid valve?

The SR-903-2 provides a relay alarm output for compatible equipment. However, the published specifications do not state the relay contact rating or wiring arrangement. Confirm these details before designing a connection to an alarm panel, valve, or ventilation system.

4. Where should the SR-903-2 gas detector be installed?

The published product specifications list ceiling mounting. However, the correct position depends on the target gas. Natural gas generally rises, while LPG is usually heavier than air. Follow the gas-specific installation manual and local requirements instead of assuming one mounting position suits both gases.

5. What is the difference between SR-903-2 and SR-903?

Both models are listed for DC 9–24V operation, natural gas and LPG monitoring, and relay alarm output. The SR-903-2 measures 104 × 51 mm, while the SR-903 measures 100 × 35 mm. The SR-903 also lists a low-power version, which is not specified for the SR-903-2 on the current product page.

Planning a Gas Safety Project?

Do you need a natural gas detector, an LPG alarm, or a wired gas detector for system integration?

Tell SUMRING your target gas, operating voltage, relay requirements, destination country, and estimated order quantity.

Contact SUMRING for a quotation to discuss SR-903-2 specifications, sample availability, and OEM/ODM options.
