SR-903 Kitchen Gas Safety Device LPG Leak Detector Sensor with Alarm System

SR-903 Gas Leak Detector with MCU control, an 85 dB sounder, LED warning and relay output.

CONTACT US
Description
Order

SR-903 Gas Leak Detector with DC 9–24V and Relay Output

The SR-903 Gas Leak Detector is a wired combustible gas alarm designed to monitor natural gas and LPG leaks in suitable indoor environments. It combines MCU control, audible and visual warnings, and relay output for compatible external alarm equipment.

Operating on DC 9–24V, the detector provides an alarm level of 10% ±5% LEL and a sound level of at least 85 dB at 1 meter. A low-power configuration is also listed for projects that require reduced current consumption.

With a compact 100 × 35 mm housing, the SR-903 offers a practical option for gas safety distributors, contractors, and system integrators.

SUMRING supports OEM and ODM cooperation for wholesale and project orders.

Key Features

  • Natural Gas and LPG Detection: Designed for combustible gas monitoring with a published alarm level of 10% ±5% LEL.
  • DC 9–24V Power Supply: Supports integration with compatible low-voltage power systems.

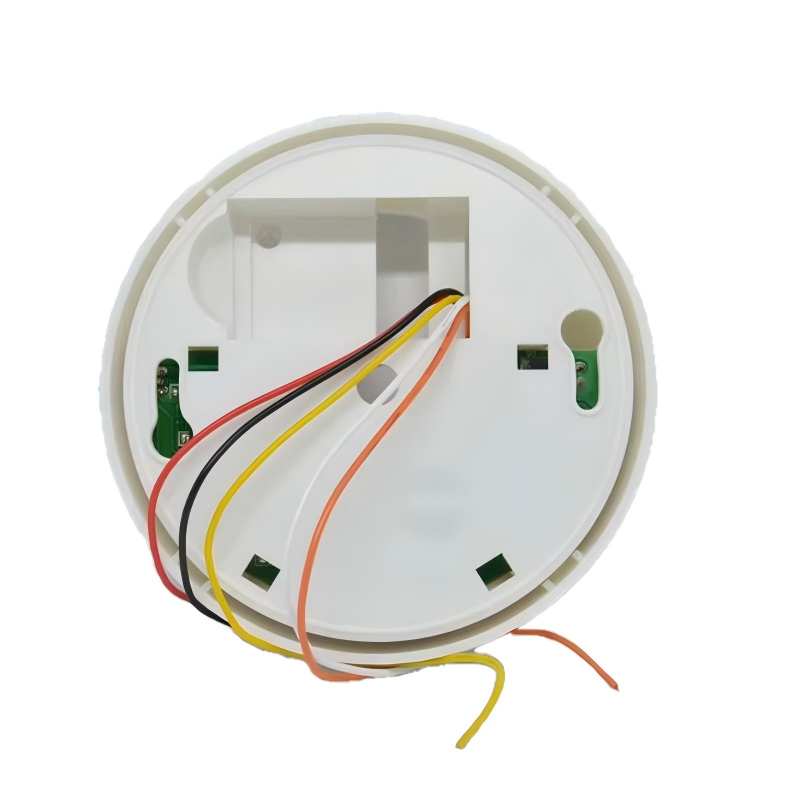

  • Relay Output: Provides an alarm interface for suitable external controllers, valves, or ventilation systems.
  • ≥85 dB Audible Alarm: Generates an audible warning when the alarm condition is reached.

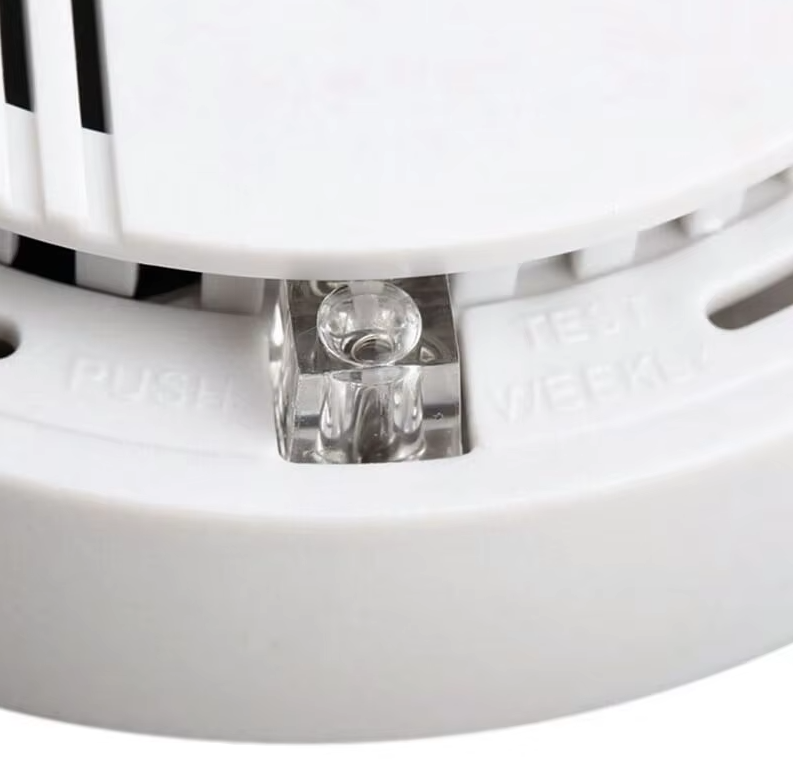

  • LED Alarm Indicator: Provides a visible warning during a gas alarm.
  • Intelligent MCU Control: Processes detector signals and supports automatic alarm reset.
  • Fault Self-Check: Includes malfunction indication to support maintenance and troubleshooting.
  • Low-Power Option: A configuration with standby current below 30mA is listed.
  • Compact Design: The 100 × 35 mm housing can be considered for projects with limited installation space.

Technical Specifications

Parameter Specification Parameter Specification
Model Number SR-903 Brand SUMRING
Product Type Gas Leak Detector Detecting Gas Natural Gas / LPG
Power Supply DC 9–24V Alarm Threshold 10% ±5% LEL
Standard Standby Current <90mA Low-Power Standby Current <30mA
Standard Alarm Current <100mA Low-Power Alarm Current <40mA
Alarm Output Relay, Sound & LED Sound Level ≥85 dB at 1m
Electronic Control MCU Automatic Reset Supported
Fault Indication Supported Listed Mounting Ceiling Mounted
Operating Temperature −10°C to +50°C Relative Humidity ≤95% RH, Non-condensing
Dimensions 100 × 35 mm OEM / ODM Available on Request

Technical note: Current consumption varies by configuration. Confirm the selected gas calibration, installation method, relay contact rating, wiring diagram, and applicable approvals before ordering. The mounting position must follow the target gas and approved installation instructions.

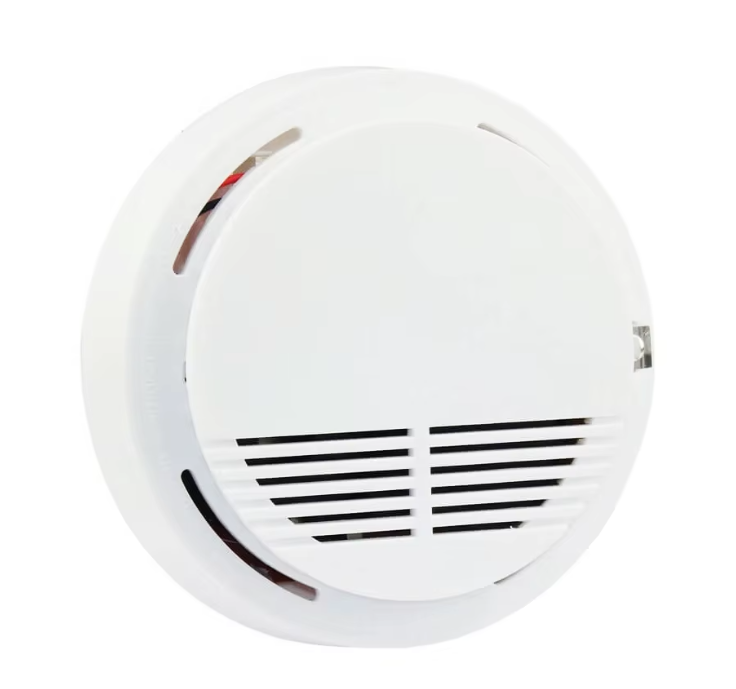

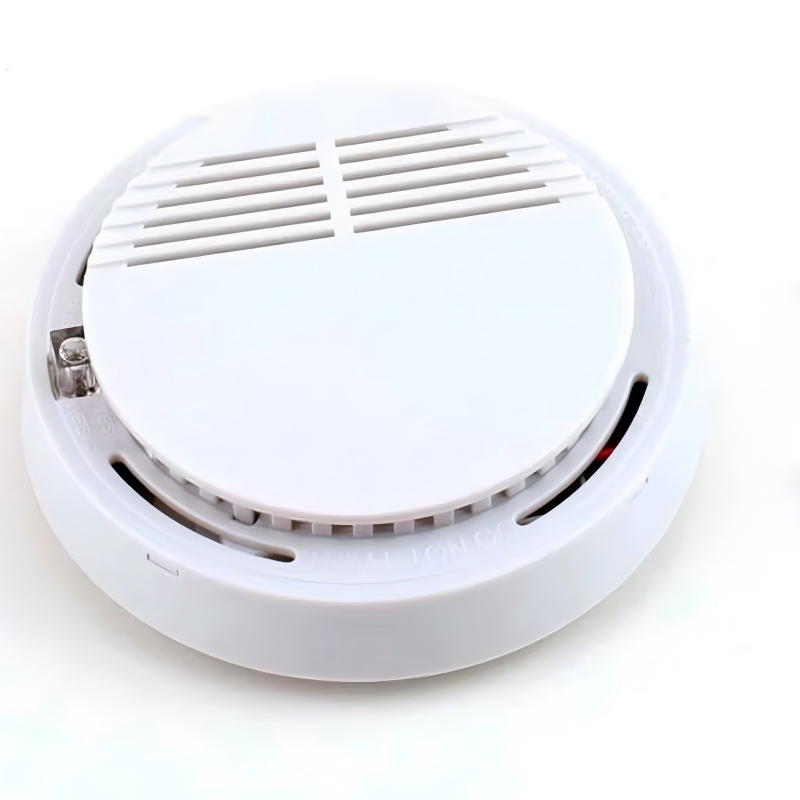

SR-903 Gas Leak Detector

How Does the SR-903 Gas Leak Detector Work?

The SR-903 Gas Leak Detector monitors combustible gas in the surrounding air. It uses electronic signal processing to activate local warnings and a relay output when the configured alarm condition is reached.

Step 1: DC Power Supply

The detector operates with a suitable DC 9–24V power source.

The selected supply must meet the power requirements of the exact detector configuration.

Step 2: Gas Detection

During normal operation, the sensing element monitors the surrounding air for the selected combustible gas.

The detector must be matched to the gas used at the project site.

Step 3: MCU Signal Processing

The internal MCU processes the sensor signal and compares it with the configured alarm level.

The published alarm setting is 10% ±5% LEL.

Step 4: Sound and LED Warning

When the alarm condition is reached, the detector activates its audible warning and LED alarm indication.

The specified sound level is at least 85 dB at a distance of 1 meter.

Step 5: Relay Alarm Output

The relay provides an output interface for compatible external equipment.

Depending on the system design, it may be connected to an alarm controller, gas shutoff system, or ventilation control equipment.

Relay contact ratings and electrical compatibility must be verified before integration.

Step 6: Monitoring and Reset

The detector supports fault indication and automatic alarm reset.

Once the alarm condition clears, it can return to its normal monitoring state. Any gas alarm must still be investigated, and connected safety equipment may require a separate reset.

To understand gas sensing and external control options, explore our combustible gas leak detector selection guide.

Applications and B2B Selection

The SR-903 can be considered for suitable indoor natural gas and LPG monitoring projects, including residential buildings, kitchens, utility spaces, and commercial installations.

Before ordering, engineering buyers should confirm the target gas, supply voltage, relay configuration, installation location, and local approval requirements.

For another housing option with similar low-voltage monitoring functions, compare the SR-903-2 Natural Gas and LPG Detector.

For AC-powered applications, the SR-908NS LPG Gas Leak Detector offers a different power supply configuration.

Explore the full SUMRING combustible gas detector range for more product options.

For independent technical background, see the UK HSE guidance on leak and gas detection.

FAQs

1. Can the SR-903 Gas Leak Detector detect both natural gas and LPG?

The SR-903 product series is listed for natural gas and LPG detection. Buyers should confirm the gas calibration of the selected configuration. The correct installation position also depends on the target gas and approved installation instructions.

2. Does the SR-903 support DC 12V and DC 24V power supplies?

Yes. The detector has a published operating voltage range of DC 9–24V, which includes DC 12V and DC 24V. The power source must meet the selected model’s current and electrical requirements.

3. Can the SR-903 relay output connect to a gas shutoff valve?

The detector provides relay output for compatible external equipment. However, a relay output does not automatically mean the detector can power or directly operate every valve. Buyers must confirm the relay contact rating, valve requirements, and wiring configuration.

4. What is the difference between SR-903 and SR-903-2?

Both products are listed for natural gas and LPG monitoring with DC 9–24V power, relay output, and audible and visual alarms. The SR-903 measures 100 × 35 mm, while the SR-903-2 measures 104 × 51 mm. Buyers should compare the latest datasheets before selecting a model.

5. Can SUMRING supply SR-903 gas detectors for OEM and ODM orders?

Yes. SUMRING supports OEM and ODM discussions for distributors, contractors, and wholesale buyers. Options may include branding, packaging, labels, and approved product configurations. MOQ, lead time, sample availability, and certification documents should be confirmed before purchase.

Need a Gas Detector for Your Next Project?

Do you need a compact low-voltage gas alarm, a low-power version, or a detector with relay output for system integration?

Tell SUMRING your target gas, power supply, required output, destination country, and estimated quantity.

Contact SUMRING for a quotation to discuss SR-903 specifications, samples, and OEM/ODM options.
