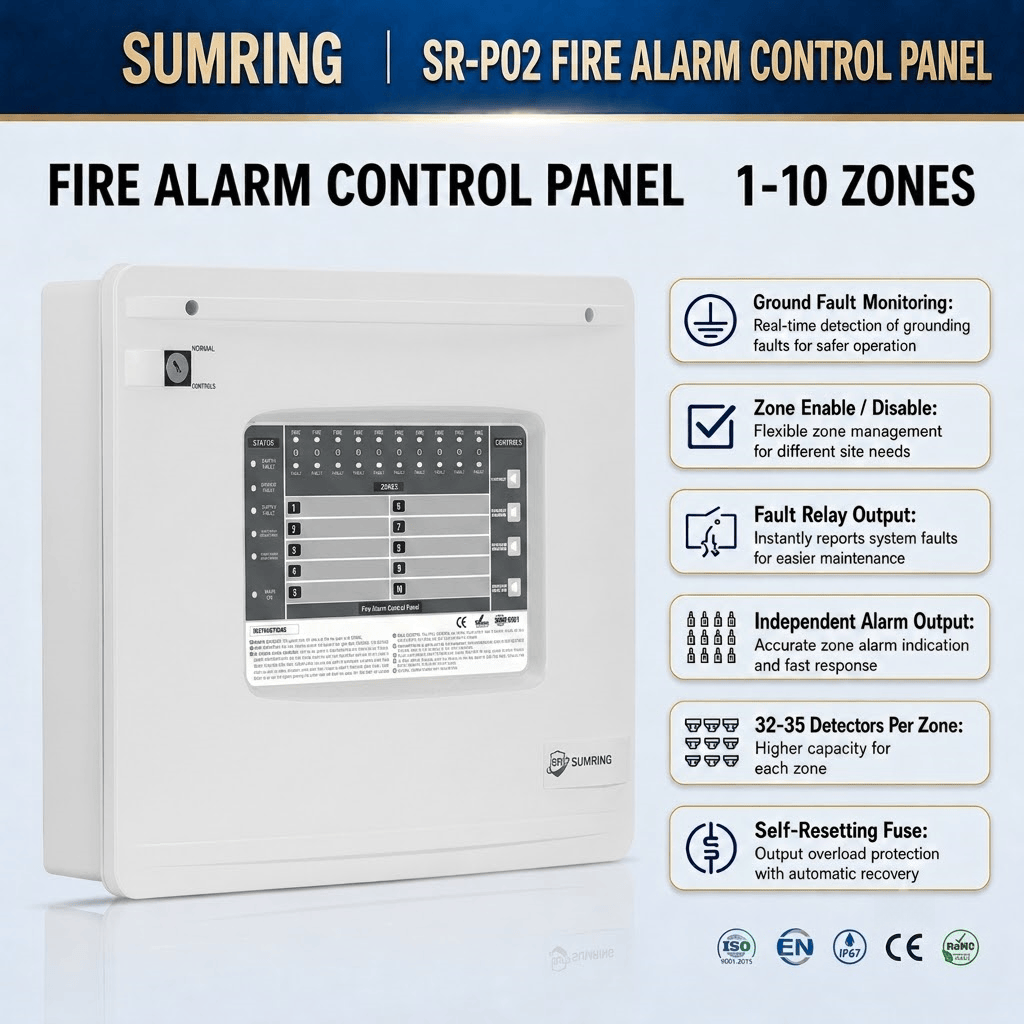

What Is SR-P02 Fire Alarm Panel Controller With High Alert Features?

The SR-P02 Fire Alarm Panel Controller With High Alert Features is designed to serve as the central brain of a conventional fire alarm system. It continuously monitors connected detectors, manual call points, and alarm devices across multiple zones, ensuring fast detection and reliable emergency response.

Unlike basic panels, the SR-P02 Fire Alarm Panel Controller With High Alert Features integrates advanced diagnostics, flexible zone control, and robust protection mechanisms, making it suitable for warehouses, factories, commercial buildings, schools, and infrastructure projects requiring stable and scalable fire safety management.

Its strength lies in combining intelligent fault detection with practical field usability, reducing downtime while improving system reliability.

SR-P02 Fire Alarm Panel Controller With High Alert Features:

1. Ground Fault Monitoring

One of the most critical features of the SR-P02 Fire Alarm Panel Controller With High Alert Features is its advanced ground fault detection capability.

It can detect abnormal grounding conditions caused by:

• Damaged or aging cables
• Moisture intrusion in wiring systems
• Metal contact interference

This function helps maintenance teams identify risks early before they develop into system failures. It also significantly reduces false alarms caused by unstable electrical grounding.

In real-world applications, this ensures the fire alarm system remains stable even in harsh environments such as factories or humid storage facilities.

2. Zone Enable / Disable Function

The SR-P02 Fire Alarm Panel Controller With High Alert Features supports independent control of each detection zone.

Users can:

• Enable or disable a single zone
• Perform maintenance without shutting down the entire system
• Test devices in a specific area safely

This flexibility is especially useful in large buildings where partial system maintenance is required.

Instead of interrupting full-site safety coverage, operators can isolate zones, improving operational continuity and reducing unnecessary downtime.

3. Fault Relay Output

The panel includes a dedicated fault relay output that activates when system issues occur.

It can detect:

• Power failure
• Battery malfunction
• Short circuit conditions
• Open circuit wiring faults
• Ground fault issues

Once triggered, the fault signal can be transmitted to external monitoring systems or control rooms.

This allows building managers to respond faster, especially in centralized monitoring environments such as security centers or industrial control rooms.

4. Independent Alarm Relay Output per Zone

Each zone of the SR-P02 Fire Alarm Panel Controller With High Alert Features has its own independent alarm relay output.

This allows precise control over external devices such as:

• Sounders and sirens
• Visual strobe lights
• Ventilation fans
• Access control systems
• Remote alarm transmission modules

Instead of a single unified alarm output, each zone can trigger different responses depending on the risk level or building layout.

This is particularly useful in multi-building campuses or industrial complexes where different zones require different emergency strategies.

5. 32–35 Detectors Per Zone Capacity

A key advantage of the SR-P02 Fire Alarm Panel Controller With High Alert Features is its higher detector capacity per zone.

Each zone supports approximately:

• 32–35 detectors per zone

Compared with traditional panels (typically 22–25 detectors per zone), this system offers:

• Reduced wiring complexity
• Lower installation cost
• Greater scalability per zone

This makes it ideal for large-scale installations where system expansion efficiency is critical.

6. Resettable Fuse Protection

The SR-P02 Fire Alarm Panel Controller With High Alert Features uses resettable fuse protection on all output terminals.

Key benefits include:

• Automatic recovery after fault clearance
• No need for manual fuse replacement
• Protection against short circuits and overloads
• Reduced maintenance cost

This feature enhances long-term reliability and ensures the system remains operational with minimal manual intervention.

How the SR-P02 Fire Alarm Panel Controller Works?

The SR-P02 Fire Alarm Panel Controller With High Alert Features operates by continuously monitoring electrical resistance changes across detection zones.

1. Detectors send signals when smoke, heat, or manual activation occurs
2. The panel identifies the triggered zone
3. Alarm relay outputs activate connected devices
4. Fault monitoring runs in parallel for system diagnostics
5. Control signals are sent to external systems if configured

This layered structure ensures both detection accuracy and system resilience.

Applications of SR-P02 Fire Alarm Panel Controller With High Alert Features

The system is widely used in:

• Industrial factories
• Warehouses and logistics centers
• Commercial office buildings
• Shopping malls
• Educational institutions
• Hospitals and public infrastructure

Its scalable zoning and strong fault management make it suitable for both medium and large installations.

SR-P02 Fire Alarm Panel Controller With High Alert Advantages

The SR-P02 Fire Alarm Panel Controller With High Alert Features provides several operational benefits:

• Improved system stability through ground fault detection
• Reduced downtime with zone isolation control
• Faster emergency response via fault relay output
• Flexible alarm strategy with independent zone outputs
• Lower cost of expansion due to higher detector capacity
• Reduced maintenance workload with resettable fuses

Overall, it delivers a balanced combination of reliability, scalability, and cost efficiency.

Installation and Maintenance Overview

Installation of the SR-P02 Fire Alarm Panel Controller With High Alert Features should follow standard fire alarm wiring practices:

• Ensure proper grounding to avoid false fault signals
• Separate detection and power lines for stability
• Label each zone clearly during installation
• Test each zone independently after setup

Maintenance recommendations:

• Regular zone testing
• Periodic fault log inspection
• Wiring integrity checks in humid environments
• Battery backup verification

FAQ:

1. What is the main function of SR-P02 Fire Alarm Panel Controller?
It monitors fire detection zones and manages alarm signals across a building.

2. How many detectors can each zone support?
Each zone supports approximately 32–35 detectors.

3. What is ground fault monitoring used for?
It detects wiring issues caused by moisture, damage, or metal contact.

4. Can I disable a single zone?
Yes, each zone can be enabled or disabled independently.

5. What happens when a fault occurs?
The fault relay output sends signals to external monitoring systems.

6. Does it support external devices?
Yes, it supports sirens, strobes, fans, and access control systems.

7. Is maintenance complicated?
No, resettable fuses reduce maintenance effort significantly.

8. Where is this panel commonly used?
It is widely used in warehouses, factories, and commercial buildings.

For businesses seeking scalable and low-maintenance fire alarm infrastructure, the SR-P02 Fire Alarm Panel Controller With High Alert Features offers a practical and cost-effective solution that enhances safety and operational efficiency.
