Welcome to Shenzhen Sumring Technology Co., Ltd.

PRODUCTS

SR-910NR-AC Home Kitchen LPG & Natural Gas Leak Detector

RF433MHz LPG natural gas leak detector with sound, LED alarm, auto reset, and AC110V/220V power options.

CONTACT US
Description
Order

SR-910NR-AC LPG Natural Gas Leak Detector for RF433MHz Alarm Systems

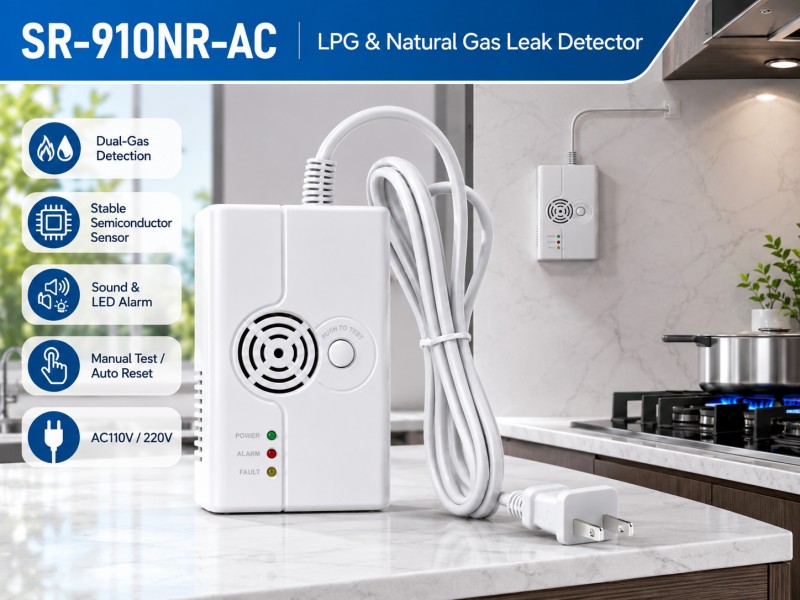

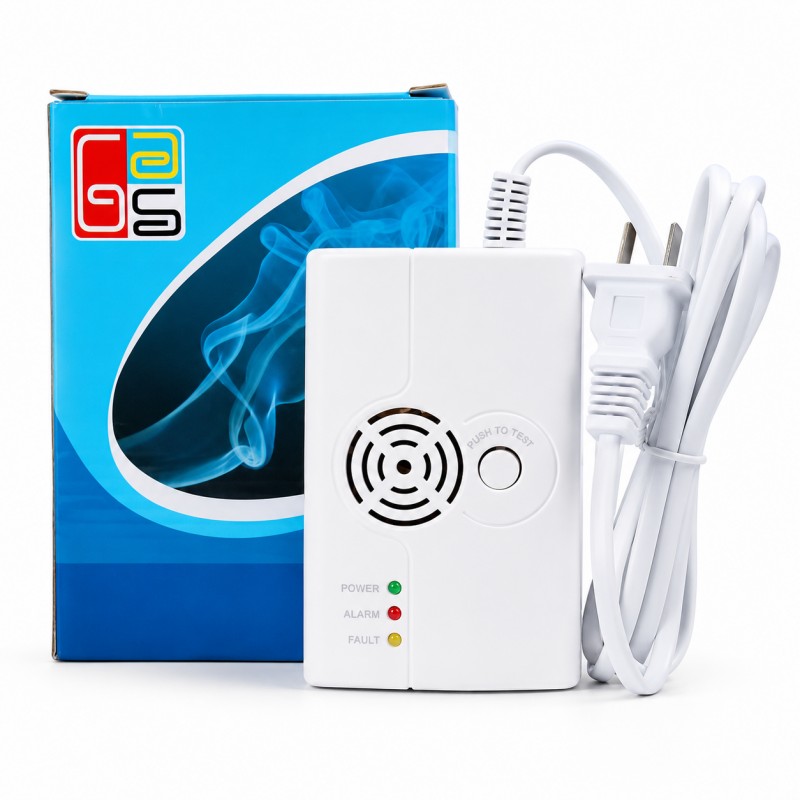

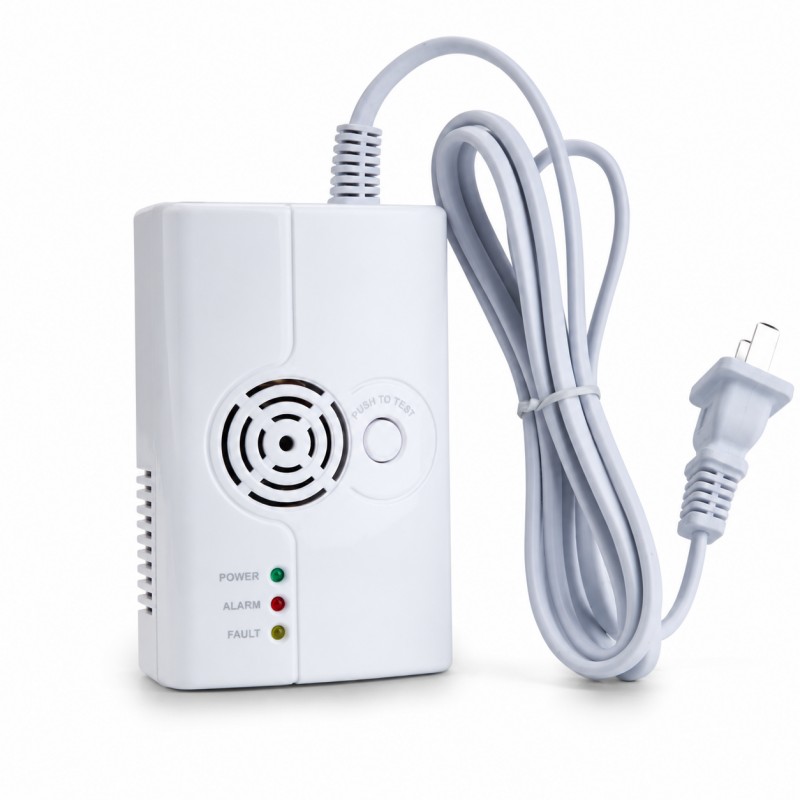

The LPG Natural Gas Leak Detector SR-910NR-AC is an AC-powered gas alarm with RF433MHz wireless signal output. It is designed for LPG or natural gas monitoring, depending on the selected gas configuration.

The detector uses a semiconductor gas sensor to monitor combustible gas in the surrounding air. When the gas reaches the preset alarm level, the device activates an audible warning, flashes its red LED, and transmits an RF433MHz alarm signal to compatible receiving equipment.

With AC 110V or 220V power options and a compact wall-mounted housing, the SR-910NR-AC is suitable for residential and selected commercial gas safety projects.

SUMRING supports OEM and ODM cooperation for distributors, importers, and project contractors.

SR-910NR-AC LPG Natural Gas Leak Detector Features

  • LPG or Natural Gas Monitoring: Supports combustible gas monitoring with the appropriate gas calibration.
  • RF433MHz Wireless Alarm Output: Transmits alarm signals to compatible RF433MHz receiving devices.
  • Semiconductor Gas Sensor: Provides gas detection through a sensitive semiconductor sensing element.
  • Audible and Visual Warning: Activates a sound alarm of at least 75 dB at 1 meter and a flashing red LED.
  • AC Power Options: Available in AC 110V or AC 220V versions for different markets.
  • Manual Test Function: Allows users to initiate a functional test according to the product instructions.
  • Automatic Alarm Reset: Returns to normal monitoring when the alarm condition clears.
  • Flame-Retardant ABS Housing: Uses an ABS enclosure with flame-retardant material properties.

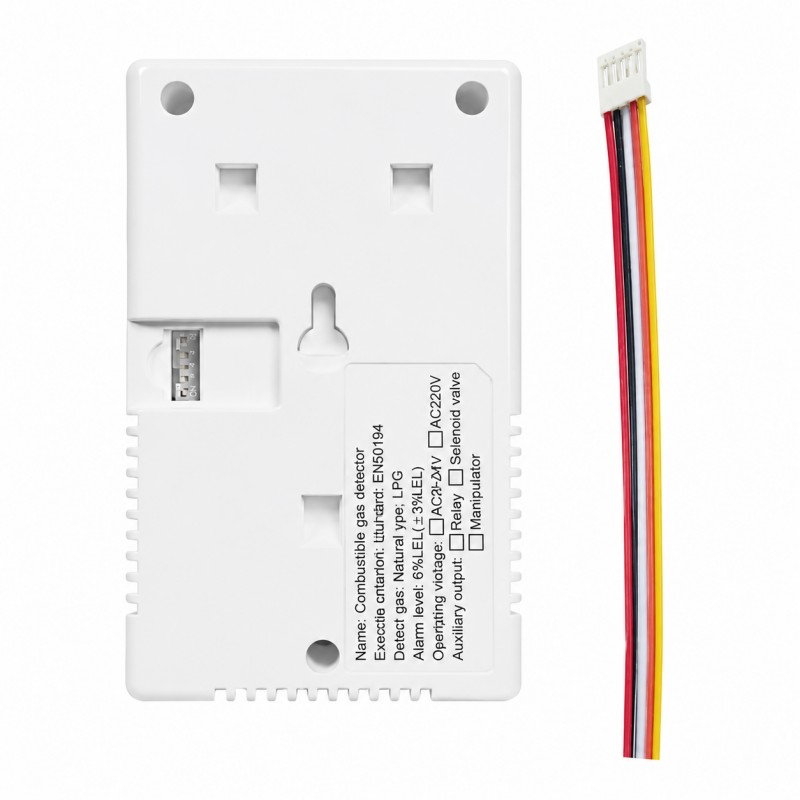

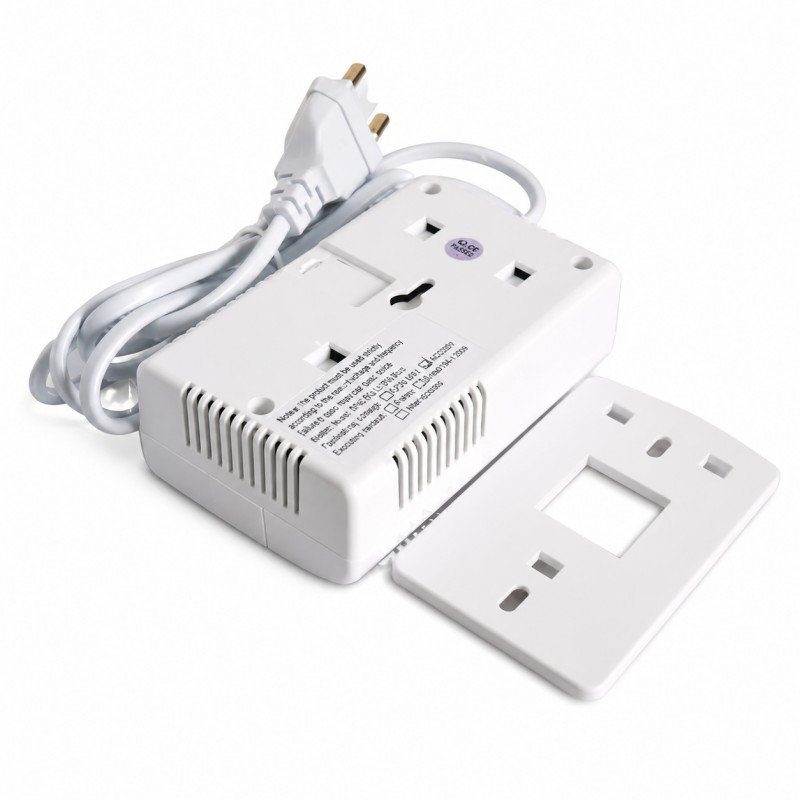

  • Compact Wall-Mounted Design: Measures 110 × 70 × 40 mm and is designed for suitable indoor installations.

Technical Specifications

Parameter Specification Parameter Specification
Model Number SR-910NR-AC Brand SUMRING
Product Type LPG Natural Gas Leak Detector Gas Type Natural Gas or LPG
Sensor Type Semiconductor Power Supply AC 110V or AC 220V
Alarm Output Sound, LED & RF433MHz Wireless Frequency 433MHz
Natural Gas Alarm Level 6% ±3% LEL LPG Alarm Level Confirm by Configuration
Sound Level ≥75 dB at 1 m Installation Wall Mounted
Working Temperature −10°C to +50°C Relative Humidity ≤95% RH, Non-condensing
Housing Flame-Retardant ABS Dimensions 110 × 70 × 40 mm
Manual Test Supported Automatic Alarm Reset Supported

Technical note: AC 110V and AC 220V are listed as voltage options. The published 6% ±3% LEL alarm level applies to natural gas. Confirm LPG calibration, receiver compatibility, available certifications, and the final product configuration before ordering.

SR-910NR-AC LPG Natural Gas Leak Detector

How Does the LPG Natural Gas Leak Detector Work?

The SR-910NR-AC uses semiconductor gas sensing technology and RF433MHz wireless alarm transmission to provide combustible gas warnings.

Step 1: Power Supply

Connect the detector to the AC power supply specified for its selected voltage version.

The device starts its internal monitoring process.

Step 2: Gas Detection

The semiconductor sensor reacts to the target combustible gas in the surrounding air.

The detector’s electronic circuit processes the sensor signal and checks it against the configured alarm level.

Step 3: Alarm Activation

When the gas concentration reaches the preset alarm condition, the detector activates its audible warning and flashing red LED.

For the natural gas configuration, the published alarm level is 6% ±3% LEL.

Step 4: RF433MHz Signal Transmission

The detector transmits an RF433MHz alarm signal to compatible receiving equipment.

This wireless alarm output can support a suitable RF433MHz monitoring system. Receiver compatibility, wireless range, and communication behavior must be confirmed before system integration.

Step 5: Automatic Alarm Reset

When the gas concentration falls below the alarm condition, the detector can return to normal monitoring.

A reset does not replace proper investigation of the cause of a gas alarm.

For more information on semiconductor sensors and gas alarm selection, read the SUMRING combustible gas leak detector guide.

Applications and Product Selection

The LPG Natural Gas Leak Detector can be considered for compatible gas safety applications in residential kitchens, apartments, rental properties, and suitable commercial buildings.

For B2B projects, buyers should confirm the gas type, required voltage, receiver compatibility, installation location, and applicable local regulations.

If a project requires a wired relay output rather than RF433MHz wireless signaling, compare the SR-903-2 DC 9–24V gas detector with relay output.

You can also explore the SUMRING combustible gas detector collection for other alarm configurations.

For independent technical background on selecting, positioning, and maintaining gas detection equipment, see the UK HSE leak and gas detection guidance.

FAQs

1. Can the SR-910NR-AC detect both LPG and natural gas?

The product series is listed for natural gas or LPG detection. Buyers should confirm the gas calibration of the selected version before ordering. Detection performance and alarm settings may differ between gas types.

2. What is the RF433MHz function used for?

The RF433MHz function allows the detector to transmit a wireless alarm signal to compatible receiving equipment. It is not the same as WiFi or direct smartphone app notification. Receiver compatibility and wireless range should be checked before installation.

3. Does the SR-910NR-AC support AC 110V and AC 220V?

Yes. The manufacturer lists AC 110V and AC 220V operating options. Buyers should select the correct version for their destination market and confirm the plug and electrical configuration before ordering.

4. Can this detector control a solenoid valve or an exhaust fan?

The published specifications confirm RF433MHz alarm output but do not list a direct relay or solenoid valve output. External control may require a compatible receiver or control module. Buyers should verify the complete system configuration before purchase.

5. Can SUMRING supply SR-910NR-AC detectors for OEM and ODM projects?

Yes. SUMRING supports OEM and ODM discussions for wholesale and project orders. Branding, packaging, manuals, and suitable product configurations can be discussed according to the order requirements.

Need an RF433MHz Gas Alarm for Your Project?

Are you sourcing an LPG detector, a natural gas alarm, or an RF433MHz wireless safety system?

Tell SUMRING your target gas, voltage, receiving equipment, destination country, and estimated order quantity.

Contact SUMRING for a quotation to request product specifications, sample availability, and OEM/ODM options.
