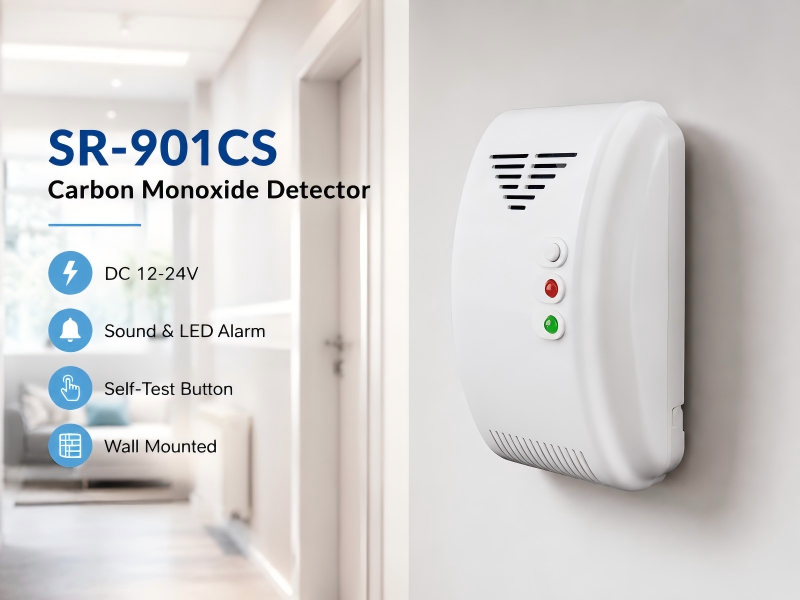

SR-901CS Carbon Monoxide Detector with NC Relay Output Network Co Leak Alarm System
DC 12–24V CO detector with sound and LED alarm, self-test, auto reset and compact wall-mounted design.
Description
Order
Main Features:
- Stable Carbon Monoxide Detection: Designed for reliable CO monitoring with stable performance in residential, commercial, and light industrial applications.
- Wide DC 12–24V Power Supply: Supports DC 12–24V input for flexible integration into alarm systems, security panels, and other low-voltage installations.
- Audible and Visual Alarm Warning: Provides a sound alarm of at least 75dB together with a flashing LED indicator for clear on-site warning.
- Built-In Self-Test and Automatic Reset: Features a convenient test button, automatic reset function, self-diagnostic testing, and low-voltage indication for easier maintenance.

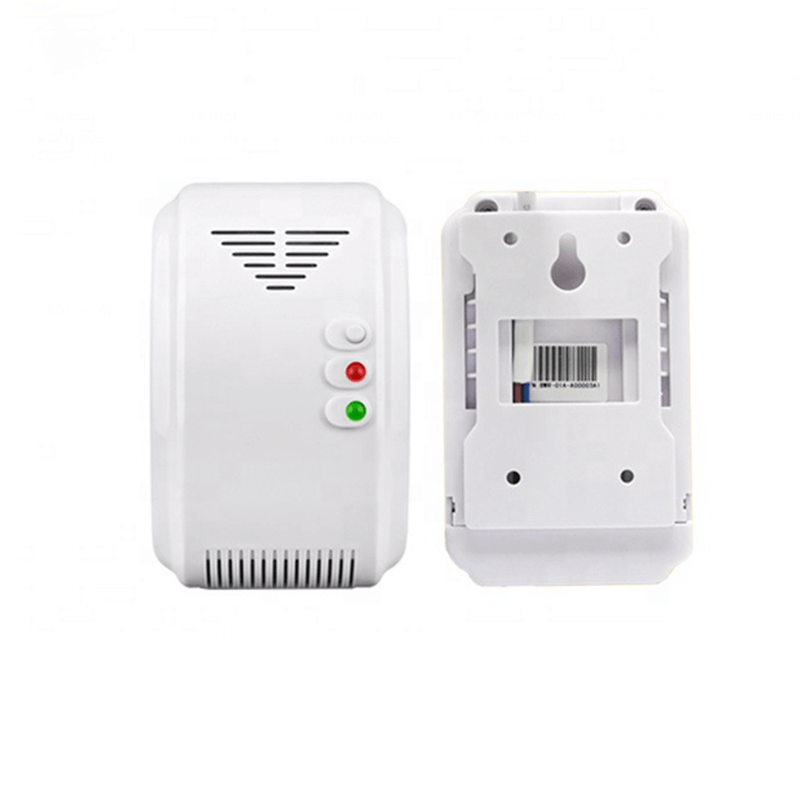

- Compact Wall-Mounted Design: The 115 × 72 × 41mm housing allows space-saving wall installation and reliable operation from -10°C to +50°C in environments up to 95% RH without condensation.
Technical Specification:
|
Model No
|
SR-901CS
|
|||
|
Operating voltage
|
DC12-24V
|
|||
|
Gas species
|
CO
|
|||
|
Alarm output
|
Sound&LED flash alarm
|
|||
|
Rated power
|
2.5W
|
|||
|
Sound level
|
≥75dB/m
|
|||
|
Installation
|
Wall mounted
|
|||
|
Working environment
|
-10℃~+50℃(≤95%RH No congelation)
|
|||
|
Dimension
|
115*72*41mm
|
|||
