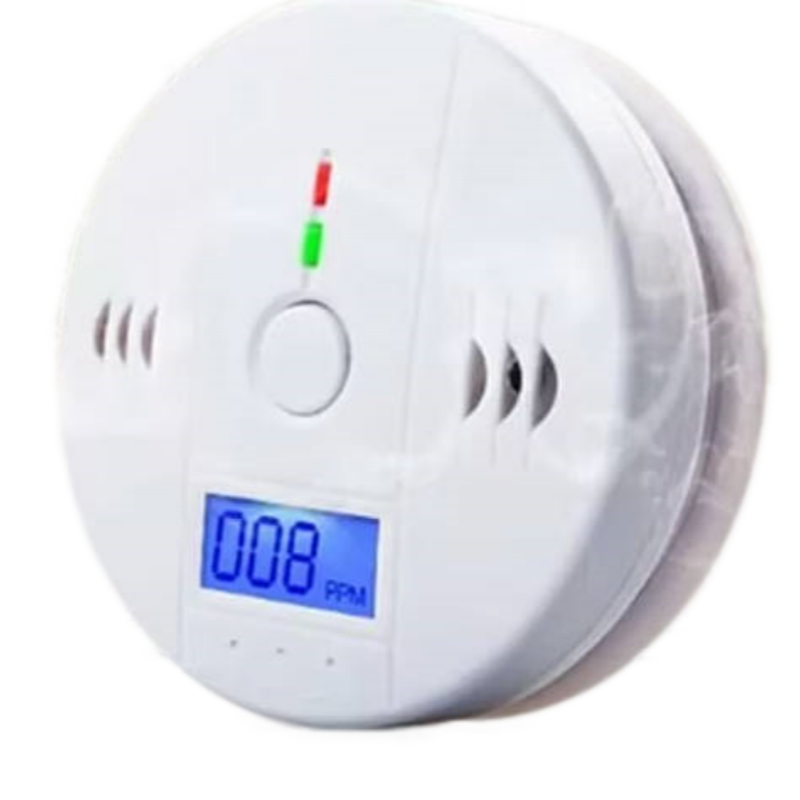

SR-907-2 Carbon Monoxide Detector with LCD
Battery-powered CO detector with LCD, electrochemical sensing, 85dB alarm, LED status and low-battery warning.
Main features:
-
High Stable Electrochemical Sensor: The high stable electrochemical sensor ensures accurate and reliable detection of carbon monoxide, providing consistent performance over a 3-5 year lifespan.
-
85 Decibel Alarm Sound: The 85 decibel alarm sound is loud enough to alert occupants in case of a carbon monoxide leak, ensuring quick and effective response to potential hazards.
-

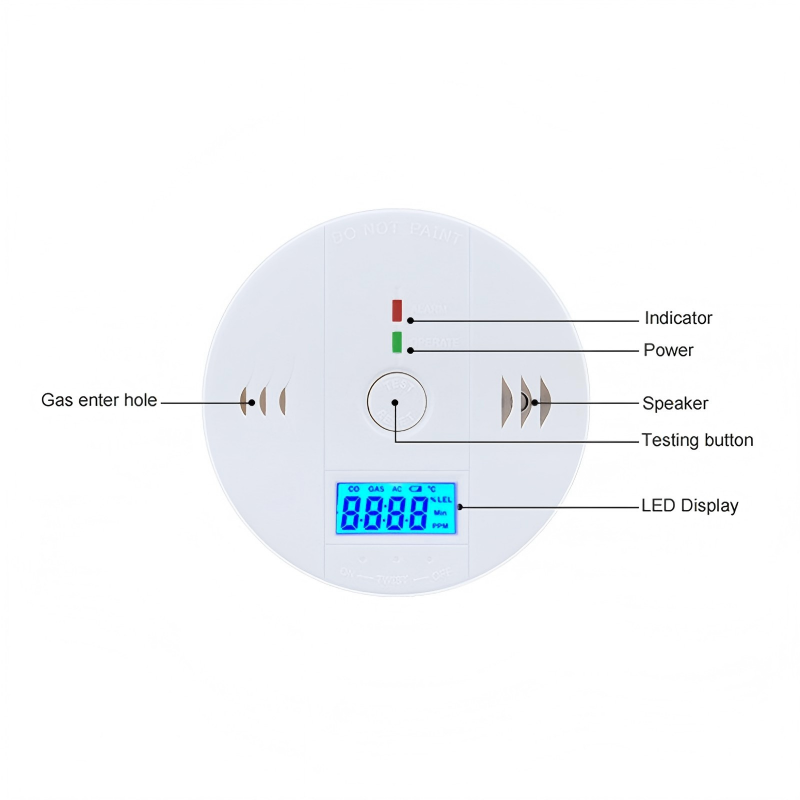

LCD Display: The LCD display provides clear and real-time information on the carbon monoxide levels, making it easy for users to monitor and manage their environment.
Technical specification:
|
Model number
|
SR-907-2
|
|||
|
Operating voltage
|
3*1.5V AA batteries
|
|||
|
Sensitivity&time
|
30PPM,after 2 hours;50ppm,alarm within 60-90minutes 100ppm,alarms within 10-40minutes
300ppm,alarms within 3 minutes |
|||
|
Standby current
|
≤10uA(without LCD) ;≤15uA (with LCD)
|
|||
|
Alarm current
|
≤25mA
|
|||
|
Opreation Ambient condition
|
5-40° c ,20-90%RH
|
|||
|
Alarm Output
|
85db/1m, red LED light
|
|||
|
Static Output
|
Green LED light flash every 30 seconds
|
|||
|
Low Battery Warning
|
Sound “di” every 30 second, displaying “lb”
|
|||
|
CInstallation
|

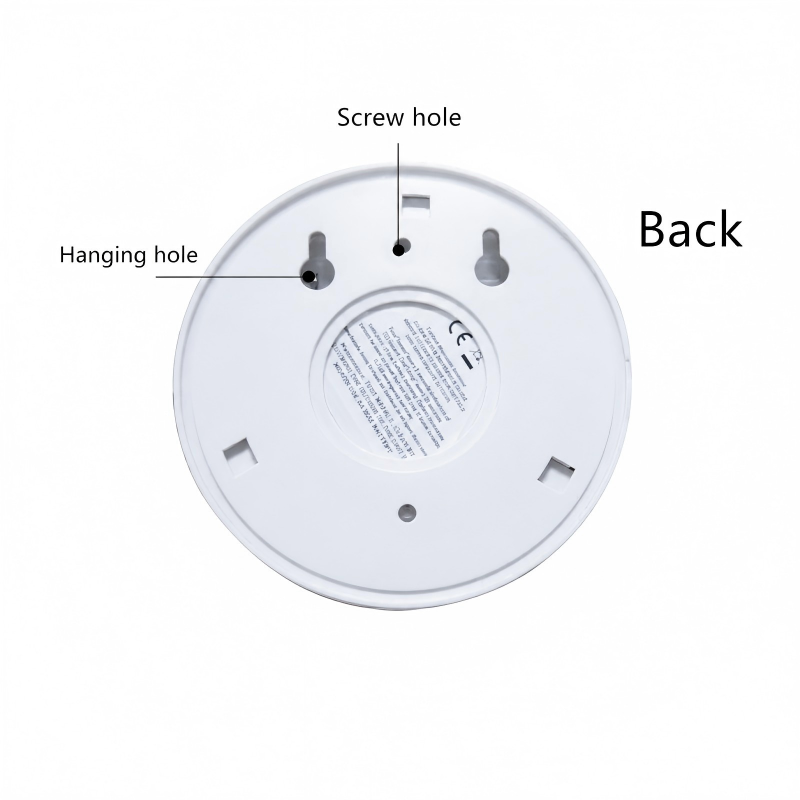

Ceiling mounted
|
|||
|
Dimension
|
100mm*38mm
|
|||
|
Product weigh
|
0.18kg/pcs
|
|||
FAQs：
1. What type of sensor does the SR-907-2 use?
The SR-907-2 uses a high-stability electrochemical carbon monoxide sensor. It provides accurate CO detection and is designed for an approximate service life of three to five years.
2. What are the carbon monoxide alarm response levels?
The specified alarm response times are:
- 30 ppm: after approximately 2 hours
- 50 ppm: within 60–90 minutes
- 100 ppm: within 10–40 minutes
- 300 ppm: within 3 minutes
These staged response levels help provide appropriate warnings at different CO concentrations.
3. How is the detector powered?
The detector operates with three 1.5V AA batteries. Its standby current is no more than 10μA without the LCD and no more than 15μA with the LCD. Alarm current is no more than 25mA.
4. What are the recommended installation conditions?
The SR-907-2 is designed for ceiling mounting. Its operating temperature range is −5°C to 40°C, with a recommended relative humidity range of 20%–90% RH. The product measures approximately 100 × 38mm.
5. Can the SR-907-2 be customized for wholesale or project orders?
OEM and ODM options may include customized logos, packaging, user manuals and labeling. Sample availability, MOQ, production lead time and required certification documents should be confirmed according to the destination market and project requirements.
