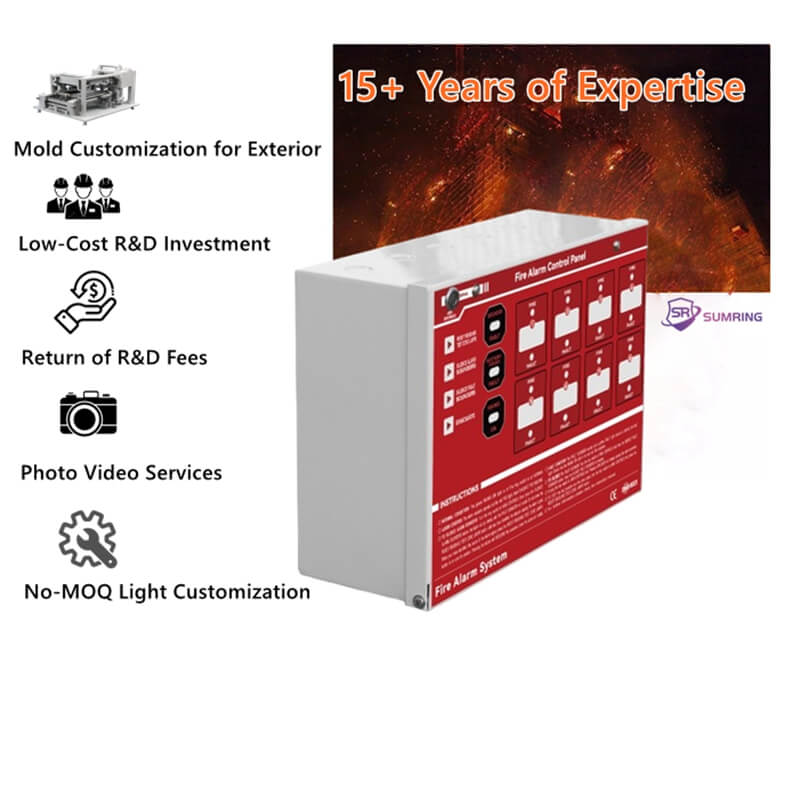

The core function of a traditional fire alarm control panel (SR-P03)is to continuously monitor all connected fire detection devices (like smoke and heat detectors) and manual call points. When a fire signal is received, the panel performs three critical actions: 1. Alerts Occupants: It automatically activates audible and visual alarms (like sirens and strobe lights) throughout the building to warn people to evacuate. 2. Indicates the Alarm Zone: It clearly shows which specific “zone” or general area of the building the alarm originated from, helping to pinpoint the fire’s location. 3. Facilitates Emergency Response: It can be connected to relay outputs to control other safety systems, such as activating emergency door releases or shutting down HVAC systems to prevent smoke spread.

Features

• 1-10 zones fire alarm control panel
• Up to 35 conventional smoke and/or heat detectors per zone
• AUX DC24V outputs
• Test and silence function
• 2 sounder circuits
• High power relay output
• Fault Monitoring: Supply Fault, Battery Fault, Sounder Fault, Zone Fault (open or short circuit), Detector Removal Fault
• Indication of EARTH fault
• Fault relay output, NC/NO optional
• Alarm relay output, NC/NO optional
• Zone alarm relay output of 5 adjacent zone, NC/NO optional
• 10 zone enable/disable settings
• Enable/disable settings: GND, power supply, sounder, zone open circuit, zone short circuit, relay output
• Terminal blocks wiring connection
