Independent & Network & wireless type optional

General Details

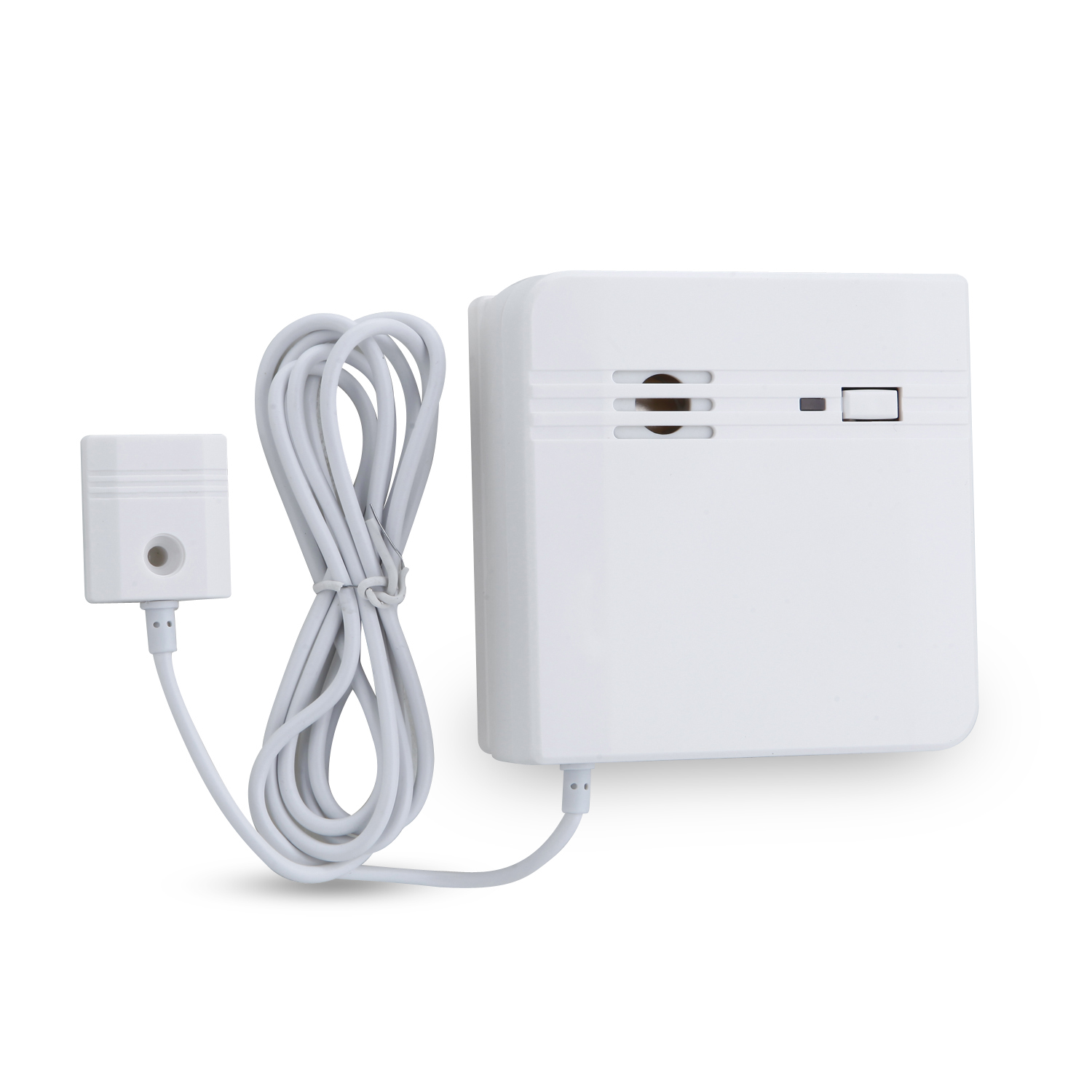

Water leakage detector:



SR-W03BHS: Independent water leakage detector

SR-W03BHR:Wireless water leakage detector

SR-W03BHC-DC: Network water leakage detector



Main features:

Rust-proof metal probe, long service life

Sound and flash alarm

Low power consumption design

Test and hush button

Low battery warning

MCU processing, resist false alarm efficiently

SMT manufacture technology, good stability

Technological details



Model NOSR-W03BHSSR-W03BHRSR-W03BHC-DC
Operating voltageDC3V(2X1.5 AA alkaline batteries)DC9-24V
Static Current≤10uA≤20mA
Alarm Current≤40mA≤50mA≤130mA
Alarm  IndicatorRed LED and buzzer souding
 Fault IndicatorOrange LED
Alarm outputSound&Flash AlarmWireless transmission(315Mhz or 433Mhz)Relay output(NC/NO)
Working environment0-60℃
Humidity0-80%RH(no congelation)
Sound level≥85dB/3m
Hush Time10 minutes
InstallationWall mounted or board installed
Dimension89*89*28mm(bracket not included)
