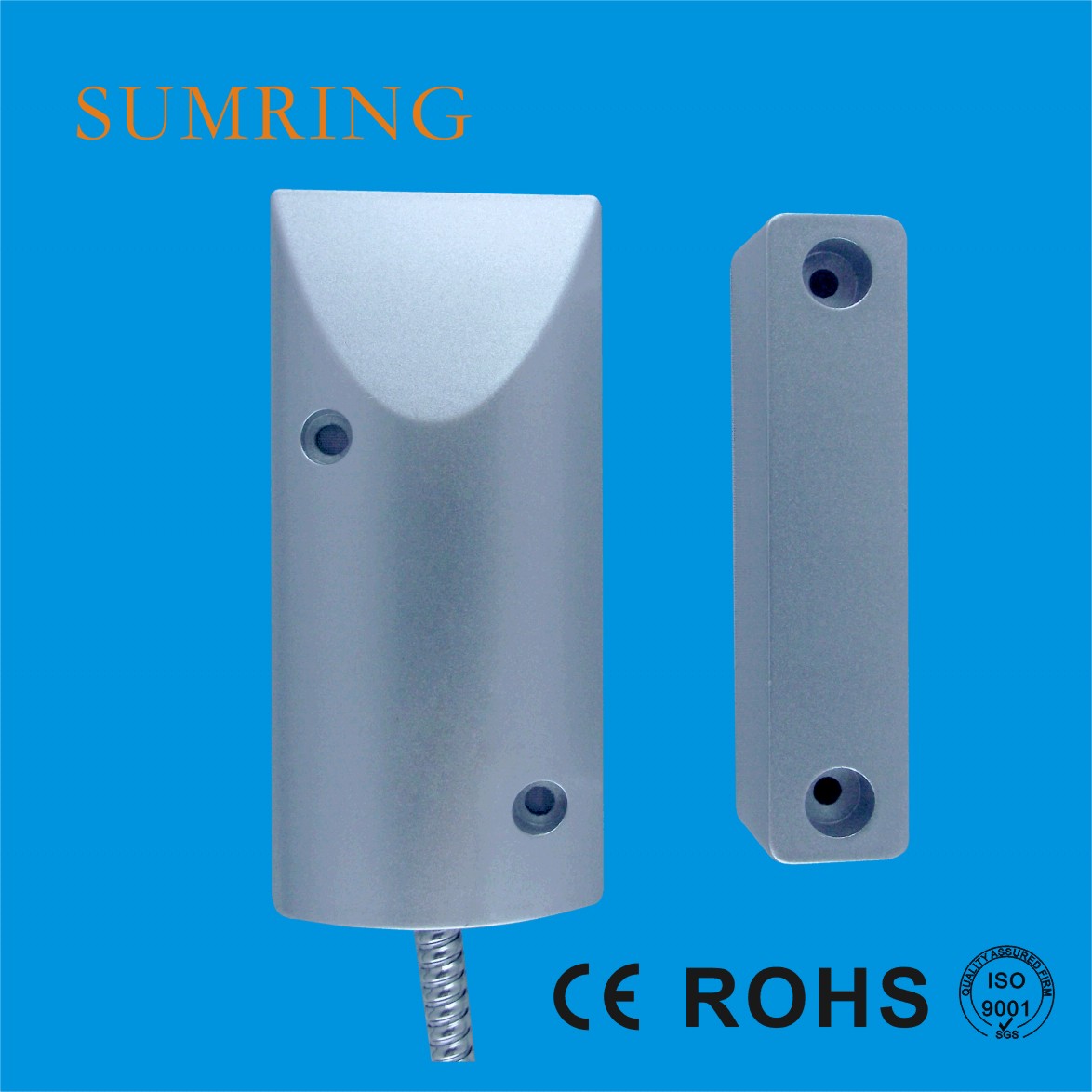

General Details

Features: For metal doors and cabinet doors

Product description:

Product size: 105 * 48 *10mm
Case Material: Zinc Alloy
Sensing distance :50-70 (mm)
Installation: buried surface-mounted cargo
Connection: 22 # wire, 550MM (with 380mm stainless steel protection tube)
Current Voltage Power: 0.5A/100V/10W
Note: NO —- normally open (path alarm)
NO & NC — normally open normally closed (this note two, can provide)

Package:1set/bag,100 sets/carton
Carton size:375*295*300mm

Technological details

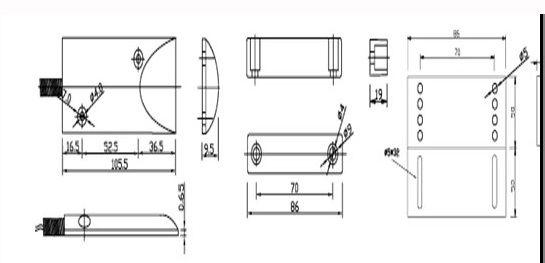

Dimension:
