2 wire & 4 wire optional
General Details

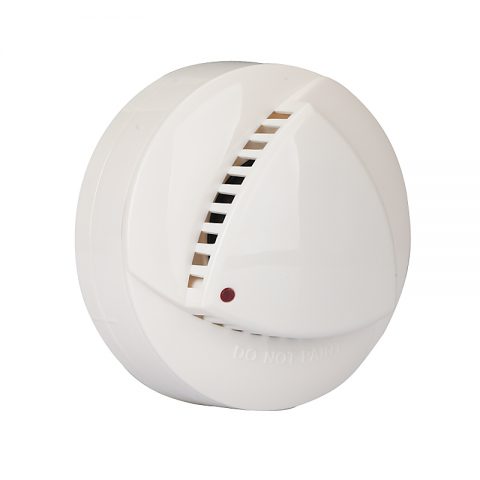

Smoke Detector
SR-815PC-2: 2-Wire Network Photoelectric smoke alarm
SR-815PC-4: 4-Wire Network Photoelectric smoke alarm
Main Features:
Power supply non-polar input
Infrared photoelectric sensor
MCU processing, eliminate false alarm
SMT manufacture technology, high stability
Dustproof, mothproof, anti-light interference design
Stainless steel shield, anti-RFI(20V/m-1GHz)
Execute criterion:UL268, GB4715, EN54-7
Technological details
Model NO. | SR-815PC-2 | SR-815PC-4 |
| Operating voltage | DC9-35V | |
| Static current | 20uA | 13mA(NC);4mA(NO) |
| Alarm current | 35mA@DC12V;83m@DC24V | 9mA(NC);19mA(NO) |
| Alarm output | Remote LED indicator | Relay output |
| Installation | Ceiling mounted | |
| Sensitivity | 0.15dB/m(±0.03dB/M) | |
| Working environment | -10ºC~+50ºC,(≤95%RH No congelation) | |
| Dimension | Φ100*50mm | |
