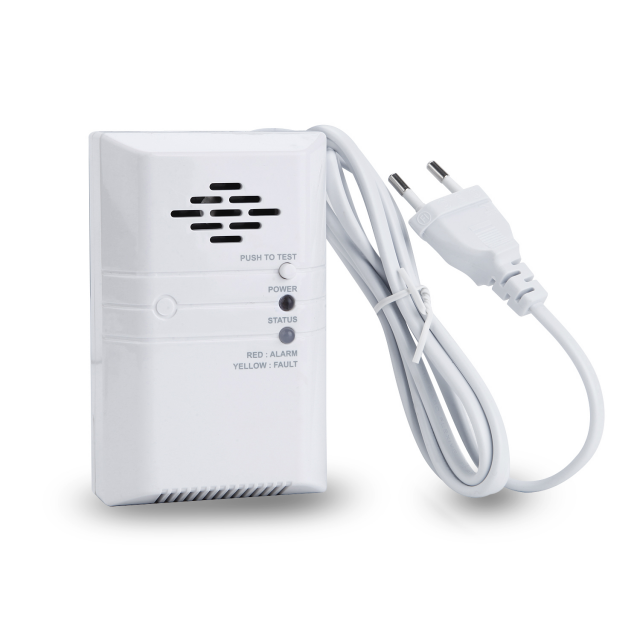

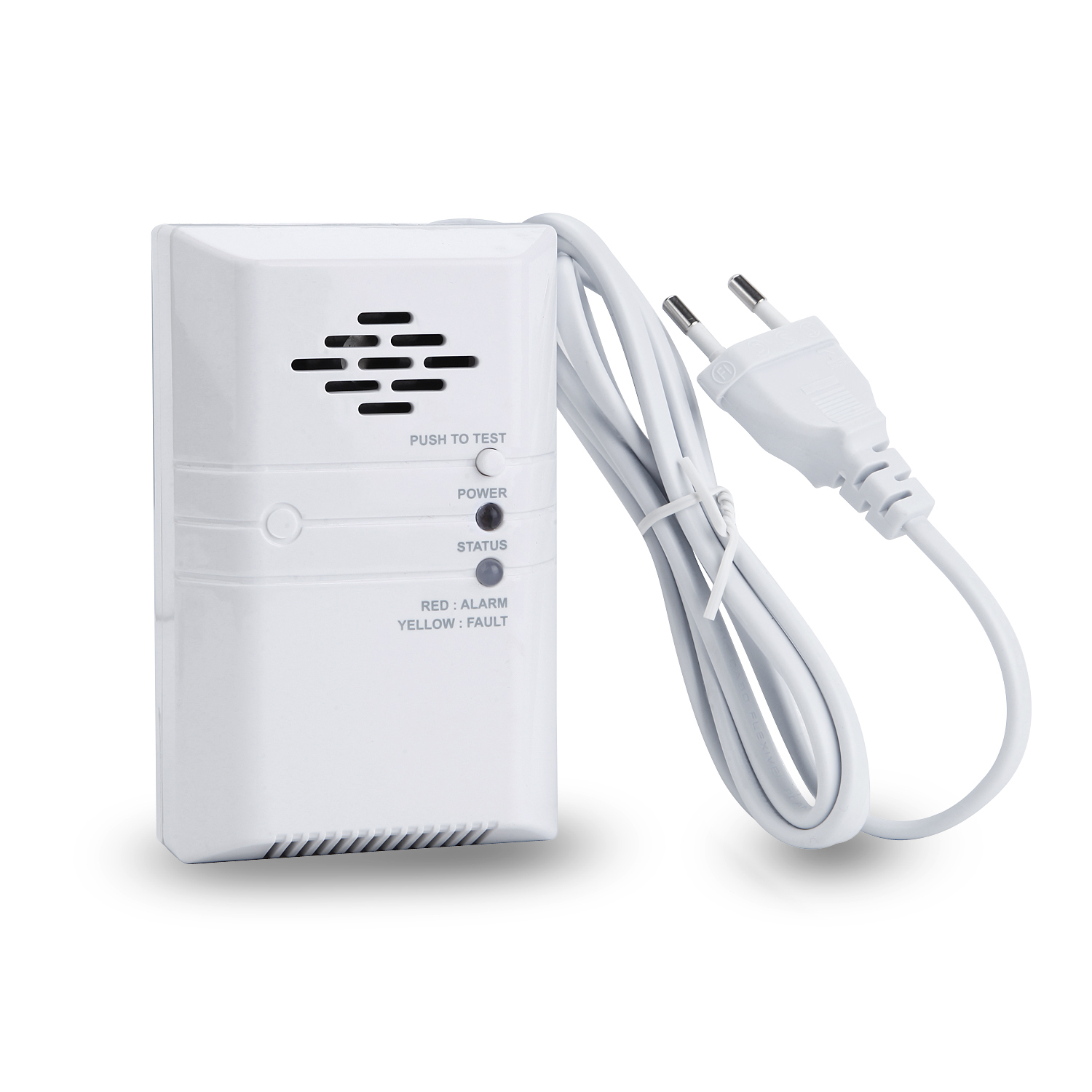

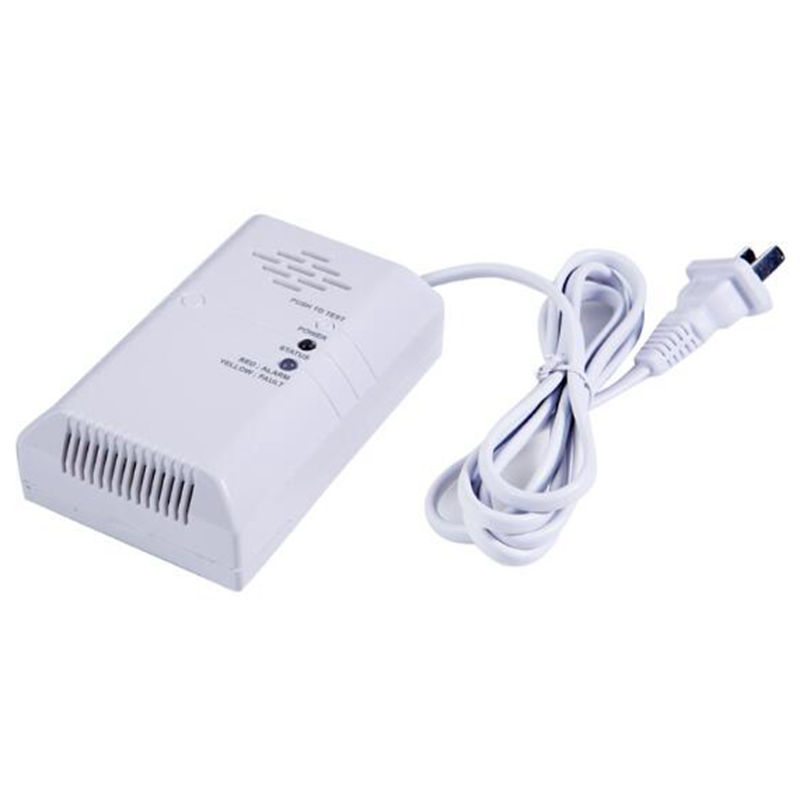

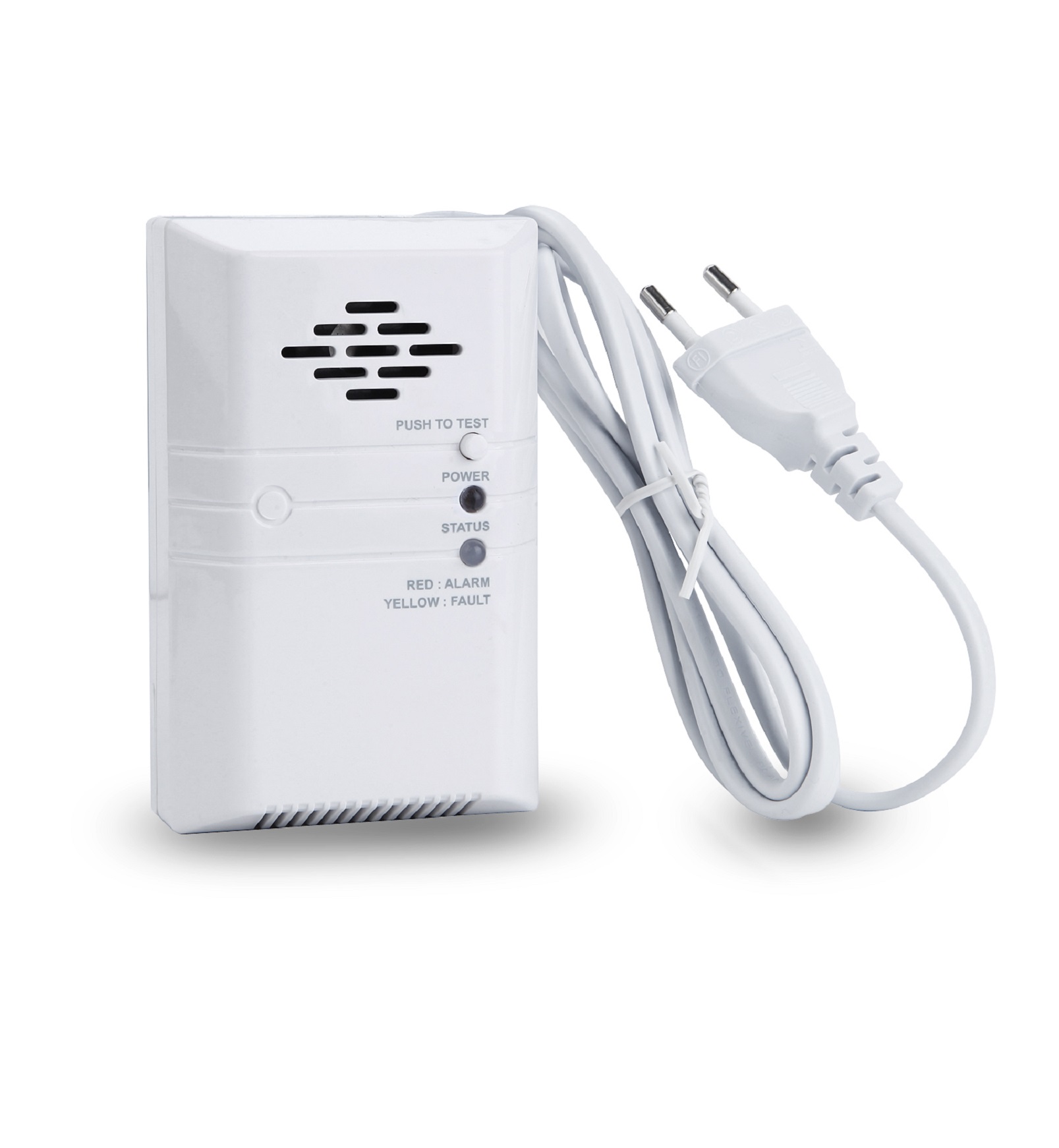

New products combustible network natural gas leak detector alarm of 12v 24v for home use SR-905NC-DC
Description
Order
Description
Features:
1. Semiconductor gas sensor
2. MCU processing
3. Auto-check sensor failure
4. Auto reset after gas clears
5. sound & flash alarm & relay output type
6. 24 hours aging tests of both PCBA and finished detectors to make it very stable
7. Double tests with gas when after two times of aging to make it very stable
Specification:
| Model No. | SR-905NC-DC |
| Operating voltage | AC12V or 24V |
| Gas species | Natural gas or LPG |
| Sensor | Semiconductor |
| Alarm level | 6%LEL(±3%LEL) of Natural Gas |
| Alarm output | Sound & LED flash alarm & relay output |
| Sound level | ≥75dB/m |

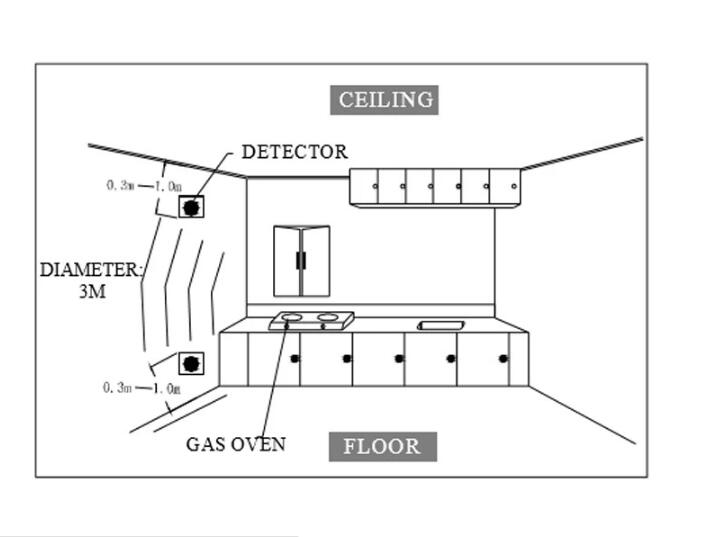

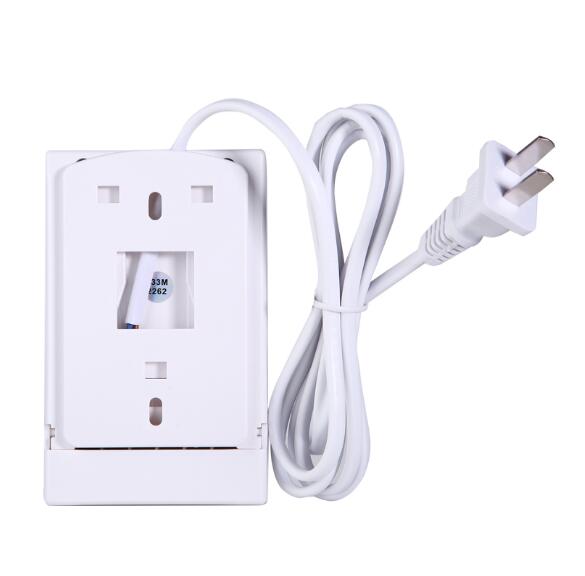

| Installation | Wall mounted |
| Working environment | -10°C~+50°C (≤95%RH No congelation) |
| Dimension | 115*72*41mm |
