Main futures:
DC Network Combustion Gas Detector Detects Natural Gas/LPG
Wall Mounted

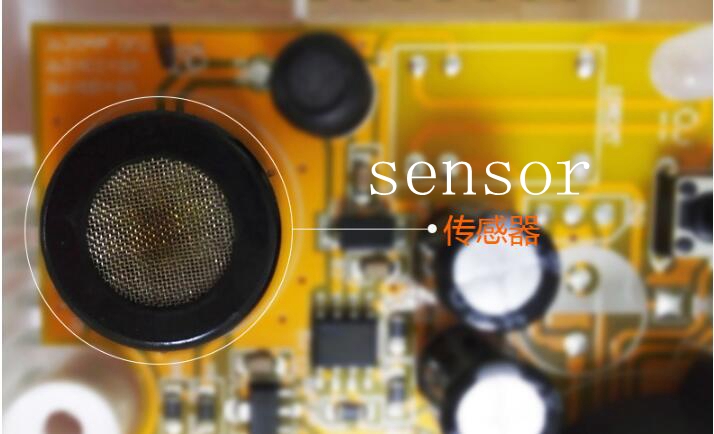

Highly Stable Semiconductor Gas Sensor
Adopts MCU Processing

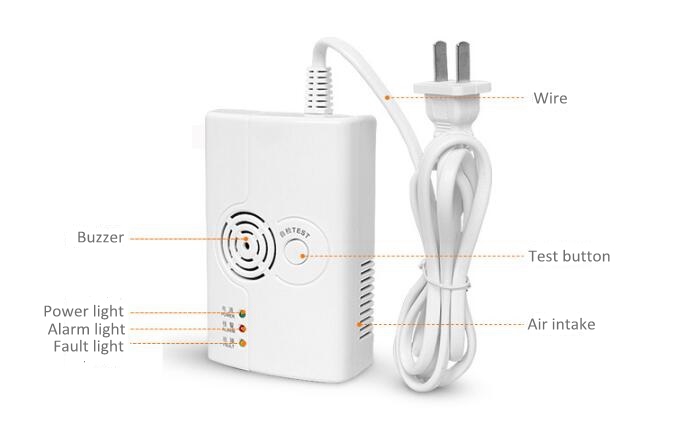

Manual Test/Auto Reset Functions
Auto Check Malfunction
High Capacity Relay (3A/250V)
SMT Manufacture Technology, High Stability
Comply to GB15322.2-2003
Specification:
|
Model No. |
SR-910NVC-DC |
|
Operating voltage |
DC12V-24V |
|
Gas species |
Natural gas or LPG |
|
Sensor |
Semiconductor |
|
Alarm level |
6%LEL(±3%LEL) of Natural Gas |
|
Alarm output |
Sound & LED flash alarm, Relay output |
|
Sound level |
≥75dB/m |
|
Installation |
Wall mounted |
|
Working environment |
-10°C~+50°C (≤95%RH No congelation) |
|
Dimension |
110*70*40mm |
