Description
Main Features:

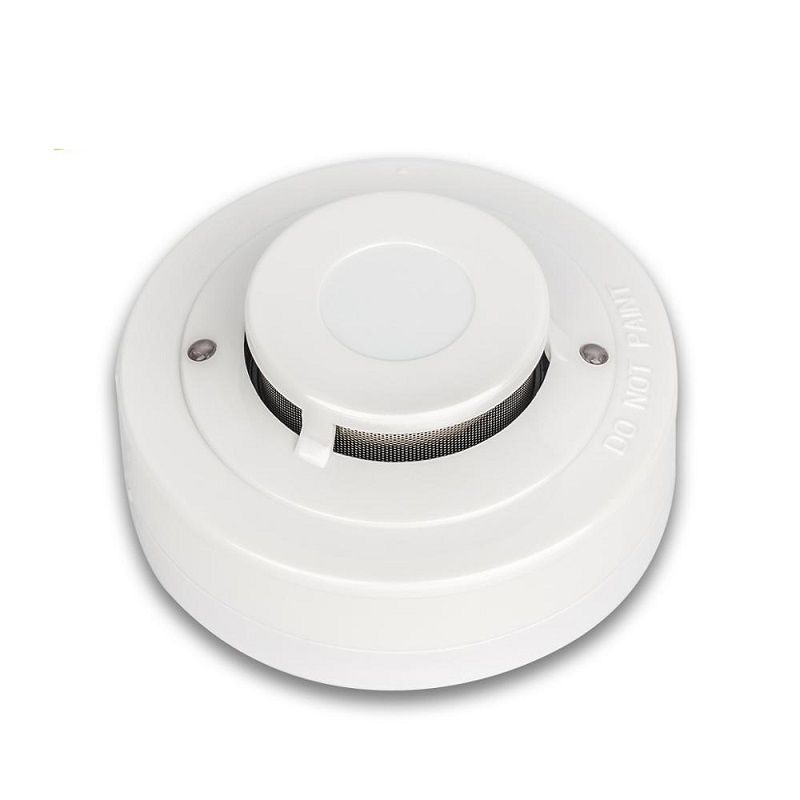

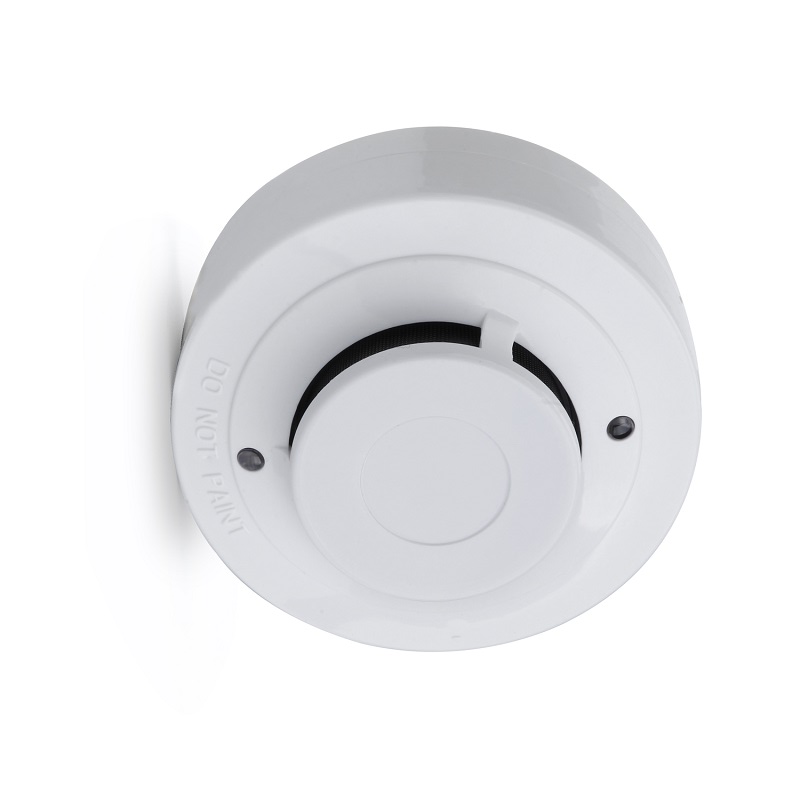

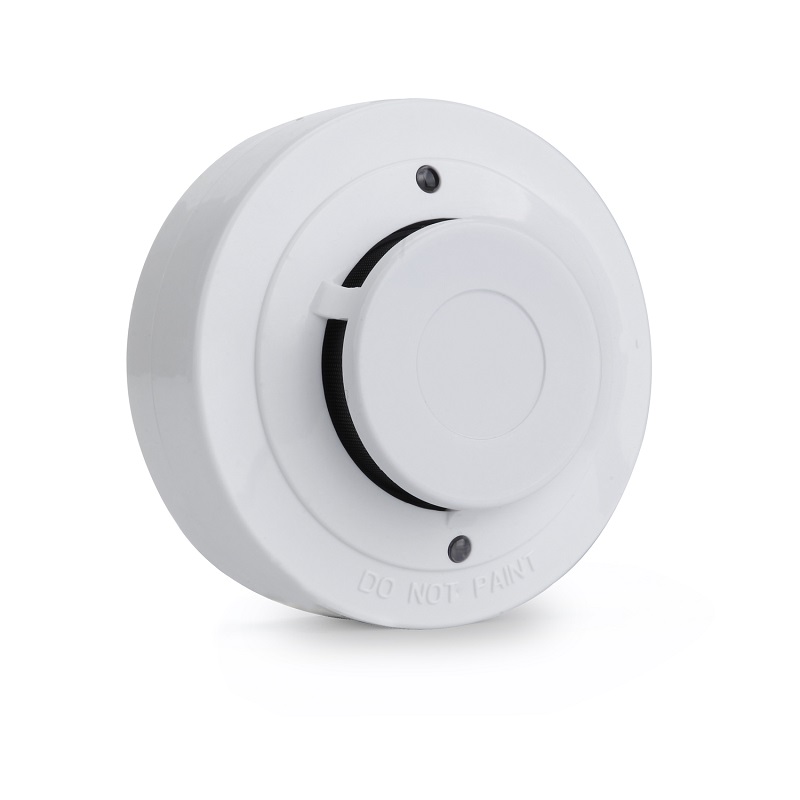

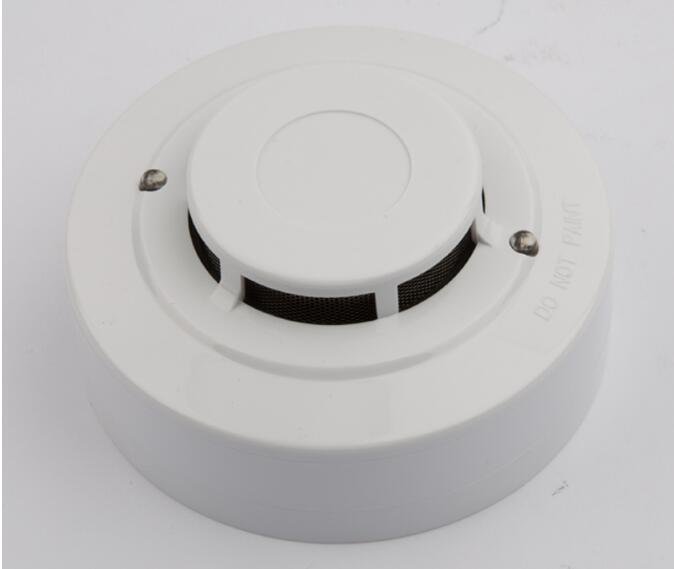

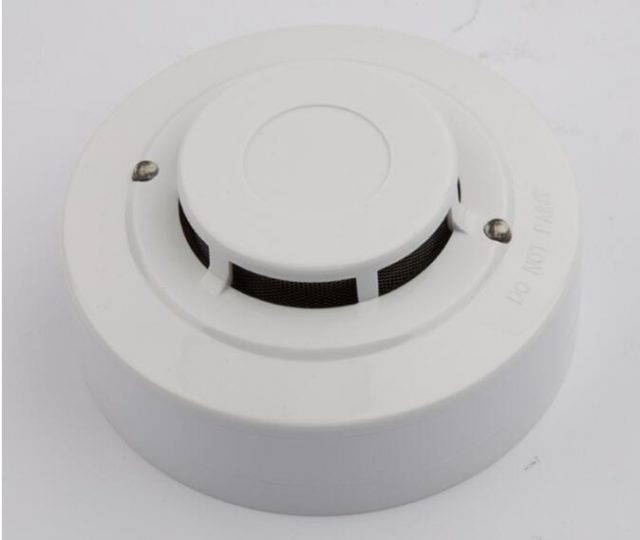

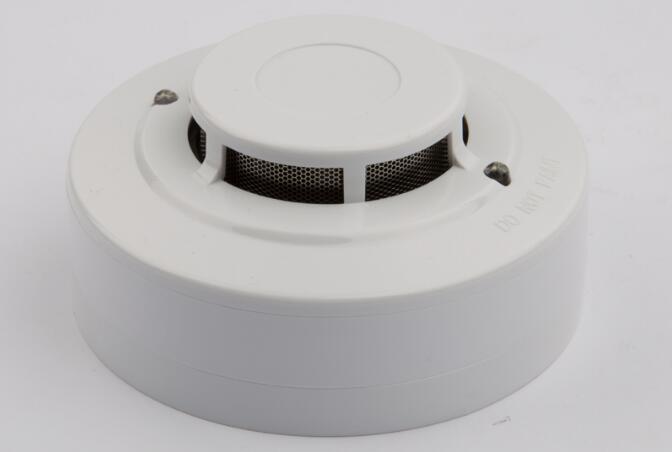

1.SR-816 is 2-Wire Network Photoelectric smoke detector
2.Power supply non-polar input
3.Infrared photoelectric sensor
4.MCU processing, eliminate false alarm
5.SMT manufacture technology, high stability

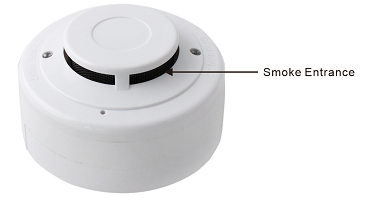

6.Dustproof, mothproof, anti-light interference design
7.Stainless steel shield, anti-RFI(20V/m-1GHz)
8.Execute criterion:UL268, GB4715, EN54-7
Technological details
| Model No. | SR-816 |
| Operating voltage | DC9~35V |
| Static current | 55uA |
| Alarm current | 35mA@DC12V;60mA@DC24V |
| Sensitivity | 0.5dB/m(±0.01dB/M) |

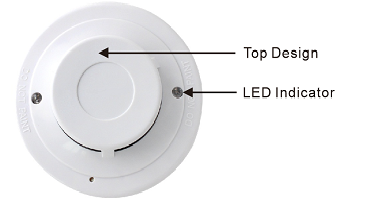

| Alarm output | Remote LED indicator |

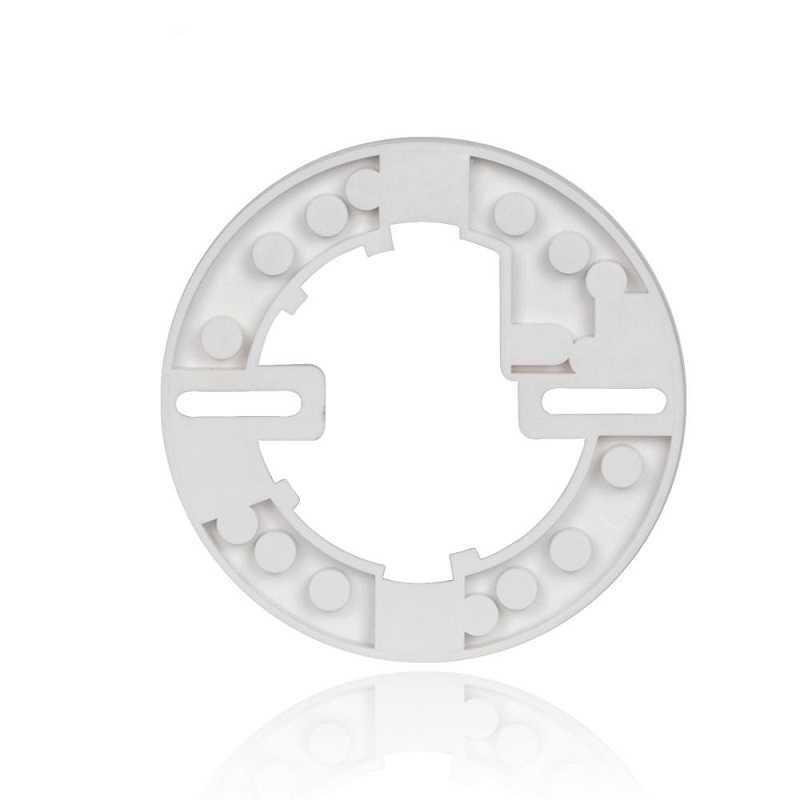

| Installation | Ceiling mounted |
| Working environment | -10℃~+50℃(≤95%RH No congelation) |
| Dimension | 104*49mm |
