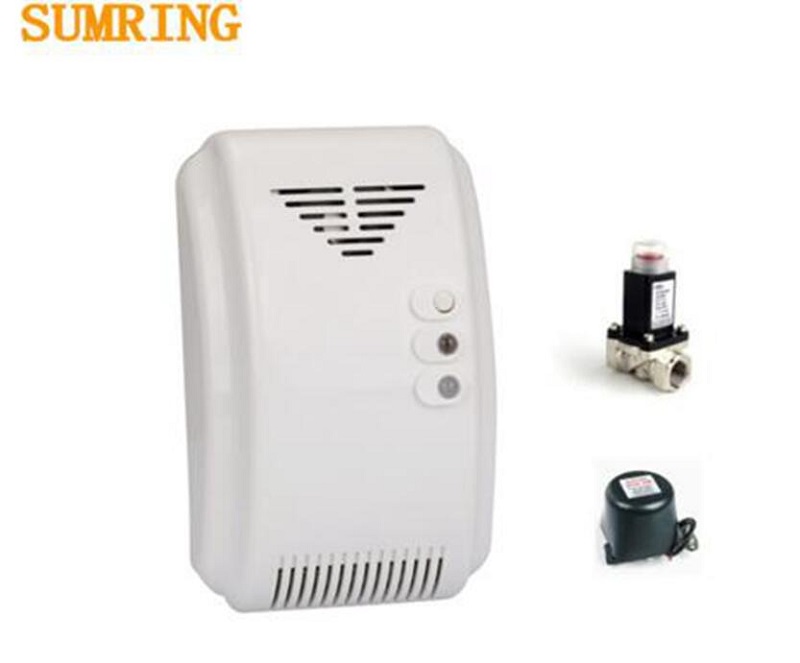

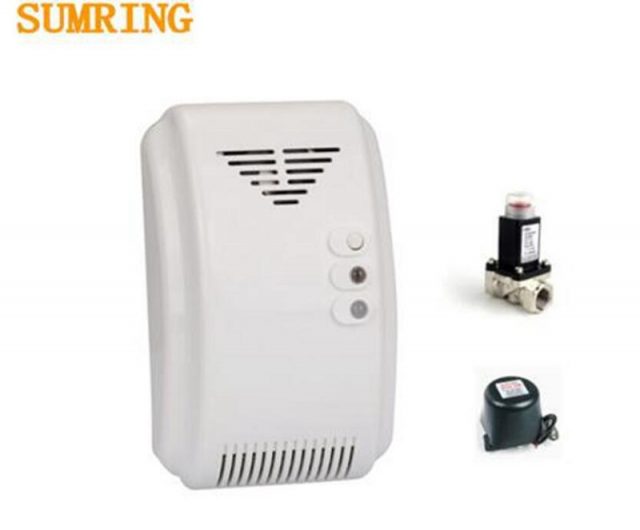

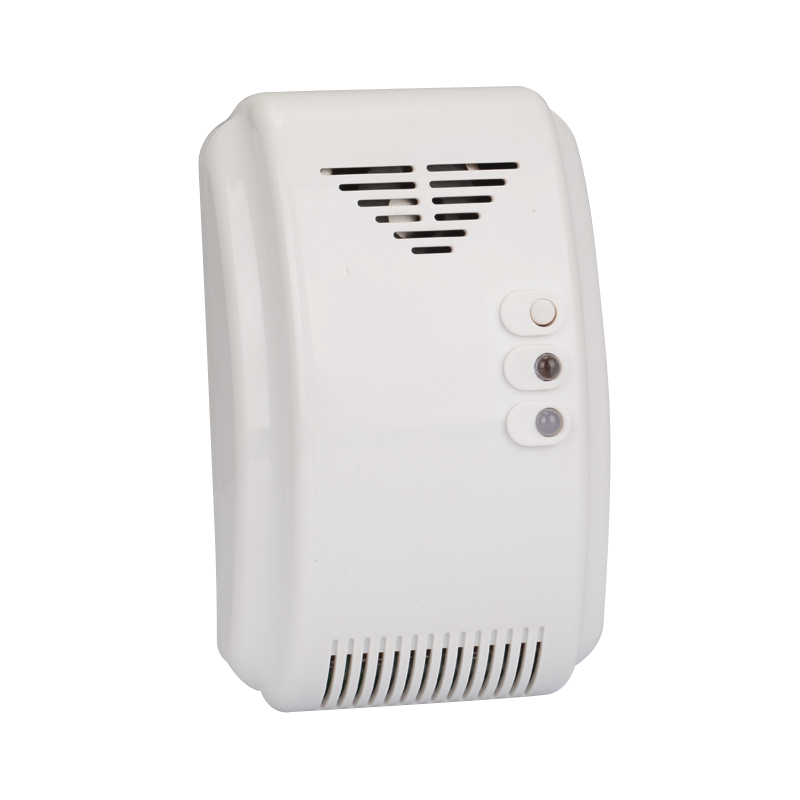

DC power supply network combustible gas detector working with Solenoid valve SR-901NVC-DC
Description
Order
Description
Main features:
1. Semiconductor gas sensor
2. MCU processing
3. Auto-check sensor failure
4. Auto reset after gas clears
5. Sound & flash alarm
6. 12V pulse output to drive solenoid valve / electrovalve to shut off gas supply
7. Relay output to drive exhaust fan to clear leaked gas
8. 24 hours aging tests of both PCBA and finished detectors to make it very stable
9. Double tests with gas when after two times of aging to make it very stable
Technical specification:
| Operating voltage | DC12-24V |
| Detecting gas type | Natural gas&LPG |
| Alarm output | Relay output&Sound &LED flash alarm |
| Drivable accessories | Solenoid valve |
| Rated power | 2.5W |
| Alarm level | Natural gas:10%±5% LEL |
| Sound level | ≥75dB/m |
| Installation | Wall mounted |
| Working environment | -10ºC~+50ºC(≤95%RH No congelation) |

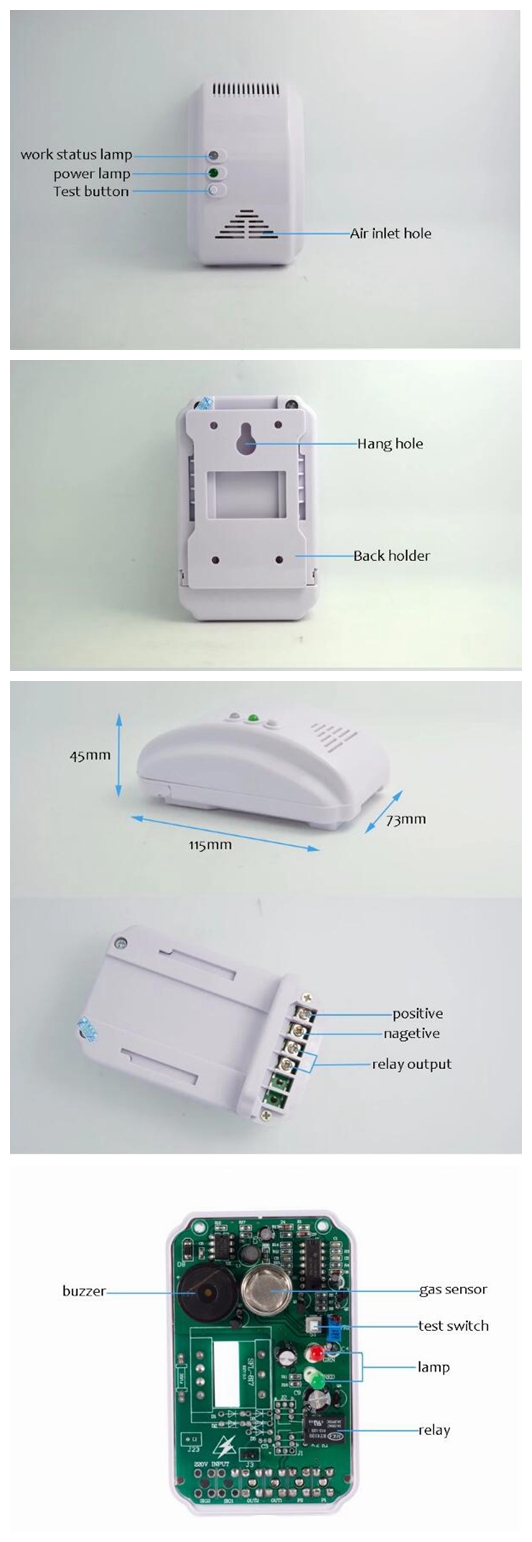

| Dimension | 115*73*45mm |
