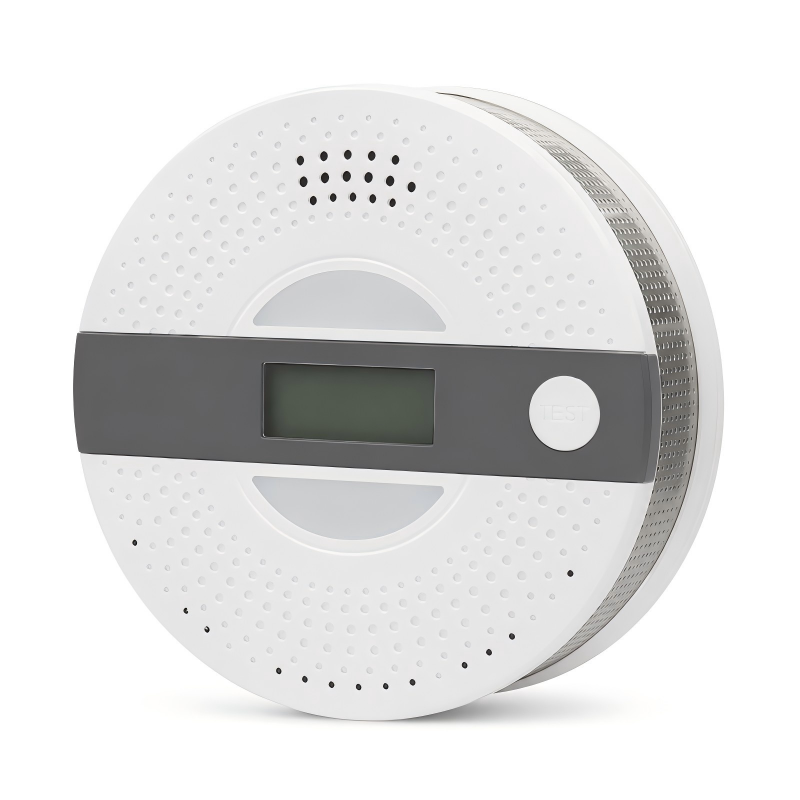

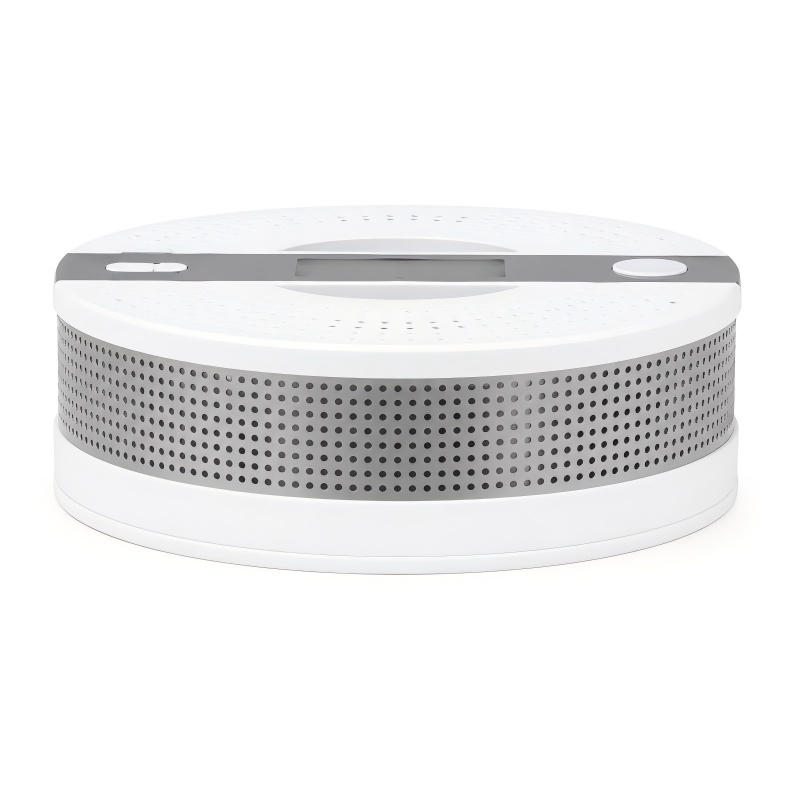

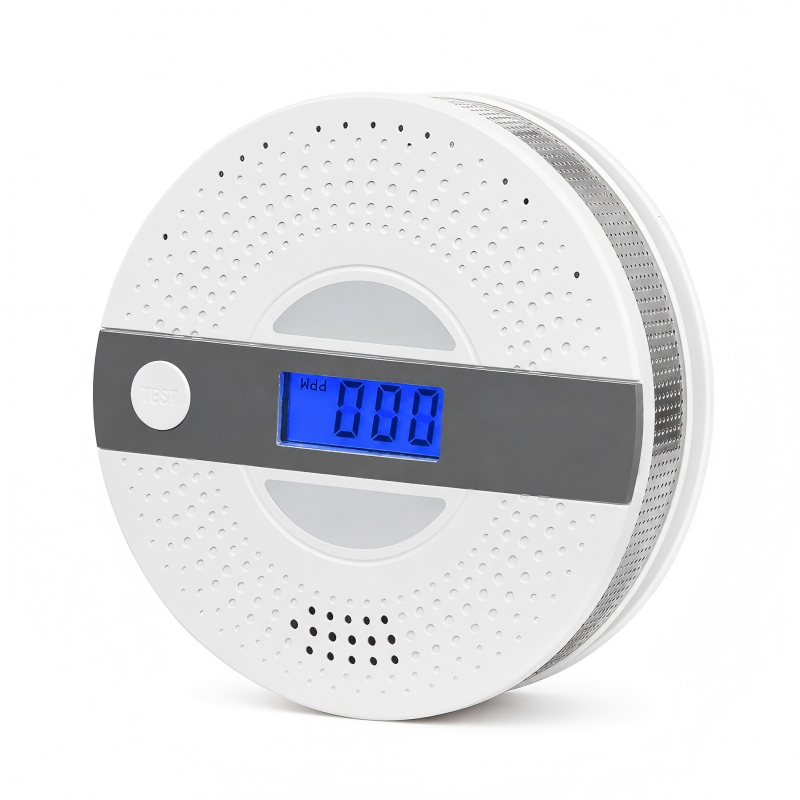

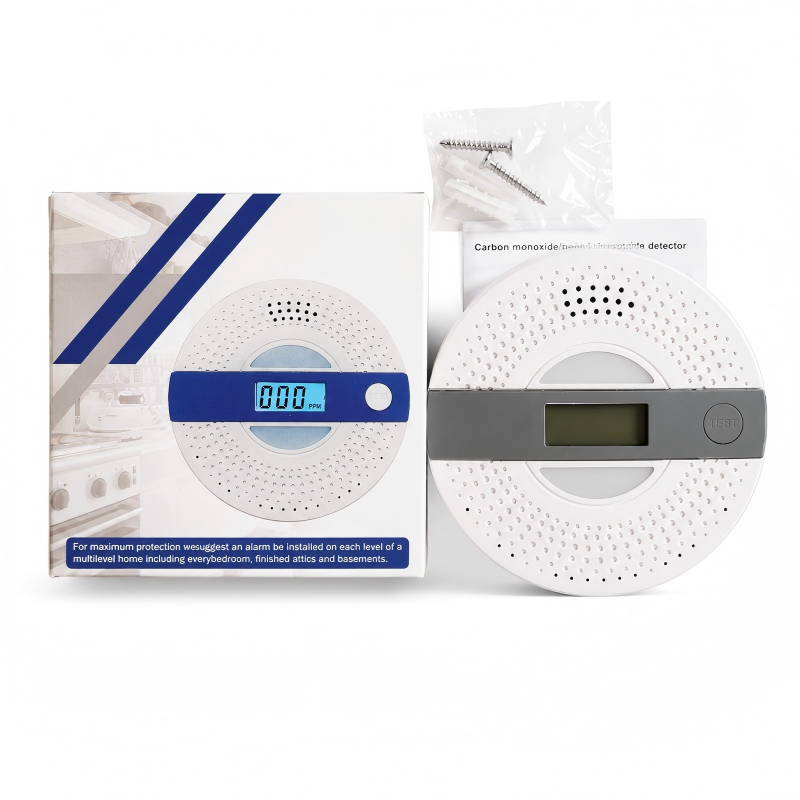

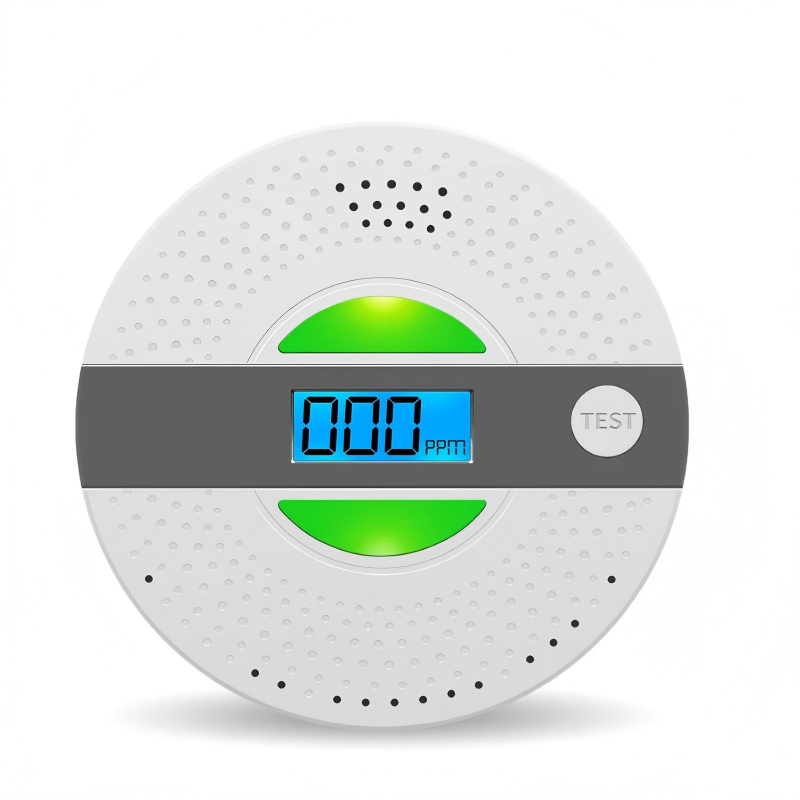

SR-822THS Carbon Monoxide & Smoke Detector Combo with Standalone Battery
SR-822THS is a battery-powered smoke and carbon monoxide detector featuring dual-sensor technology, low power consumption and compact installation for residential and commercial safety projects.
Main features:
Dual Smoke and Carbon Monoxide Detection: Combines smoke detection and carbon monoxide monitoring in one standalone device, helping reduce installation complexity and procurement costs for residential and commercial safety projects.
Dual-Sensor Detection Technology: Uses a semiconductor smoke sensor together with an electrochemical CO sensor to provide stable detection performance with low sensitivity drift.
Microprocessor-Controlled Performance: Built-in microprocessor control continuously processes sensor signals, improving operating stability and supporting reliable alarm response in everyday environments.
Low-Power Standalone Battery Operation: Powered by three 1.5V AA batteries with a standby current below 105μA, making the detector suitable for locations where fixed wiring is unavailable or inconvenient.
Wide CO Monitoring Range and Environmental Adaptability: Supports a carbon monoxide detection range of 0–999 ppm, recovery within 30 seconds, and operation from −10°C to 50°C at 10%–95% relative humidity.
Technical specification:
| Model No | SR-822THS |
| Operating voltage | 3*1.5V AA battery (3 AA 1.5V) （battery is not included） |
| Standby current | Less than 105uA |
| Applicable | Smoke and carbon monoxide |
| Service life | 3 years |
| Sensor Type | Semiconductor sensor and electrochemical sensor |
| Working temperature | -10-50 °C |
| Working humidity | Relative humidity 10%-95% |
| Carbon monoxide gas detection concentration | 000~999 PPM |
| Alarm volume | more than or equal to 70dB (1 meter right ahead) |
| Recovery time | Less than 30 seconds |
| Dimensions | 105*35mm |
