General Details
Main features:

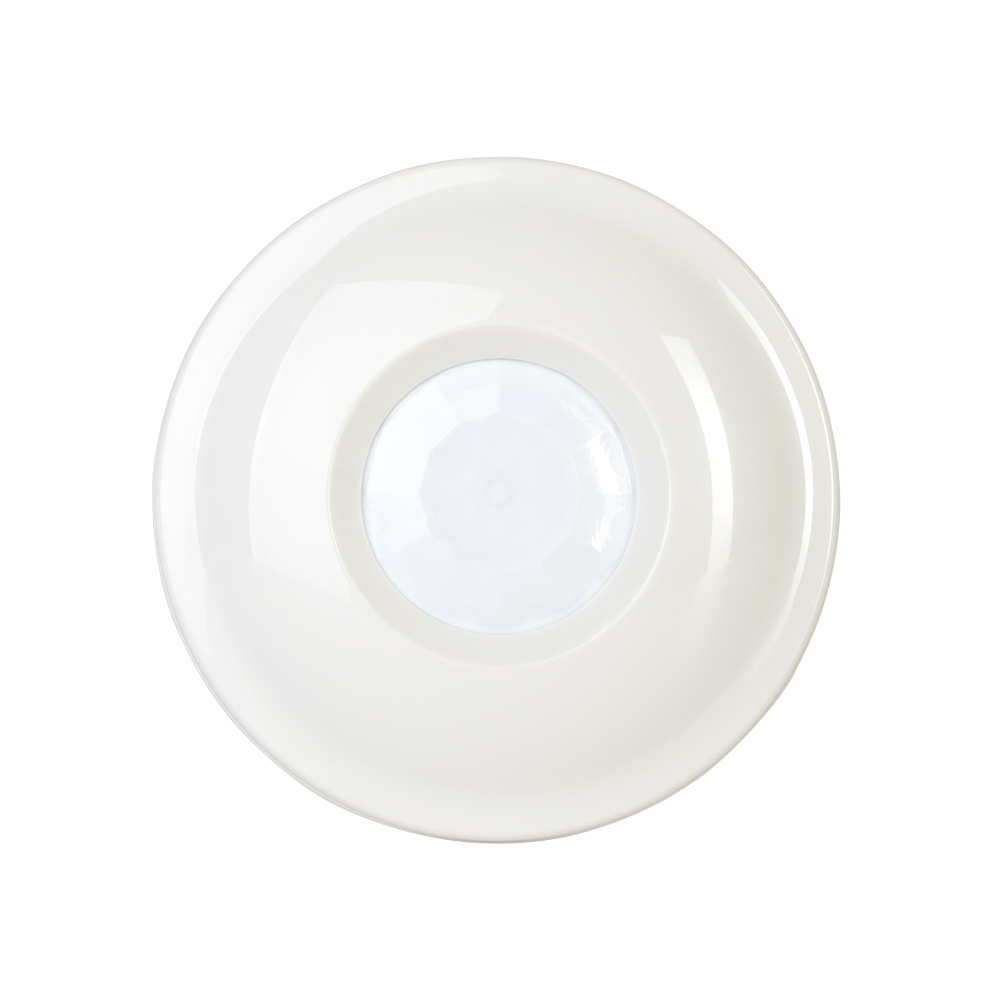

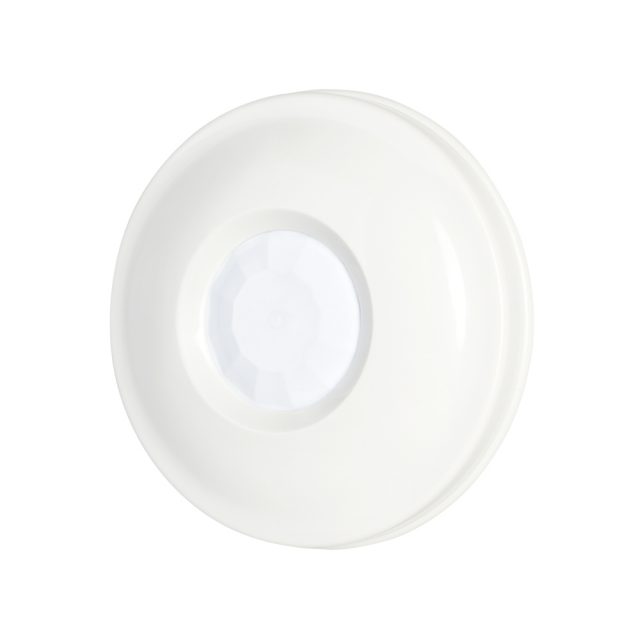

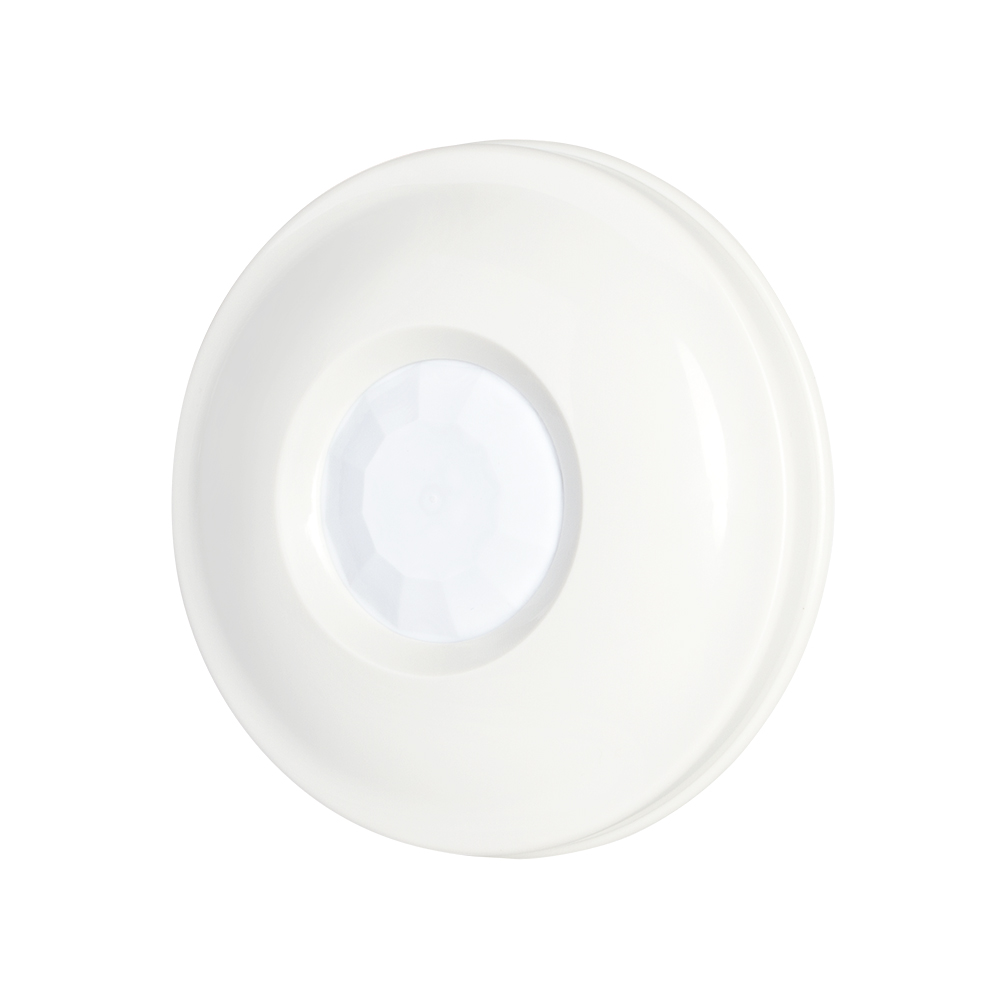

1.SR-613W Wide Angle PIR Detector (Infrared sensor)
2.ceiling mounted
3.fireproof ABS housing
4.LED ON/OFF optional
5.automatic temperature compensation
6.SMT adopted, anti-RFI & anti-EMI
7.pulse count optional
Technical specification:
| operating voltage | DC 9-16V |
| consumption current | ≤18mA(DC12V) |
| operating temp | -10ºC~+50ºC |
| installation mode | ceiling mounted |

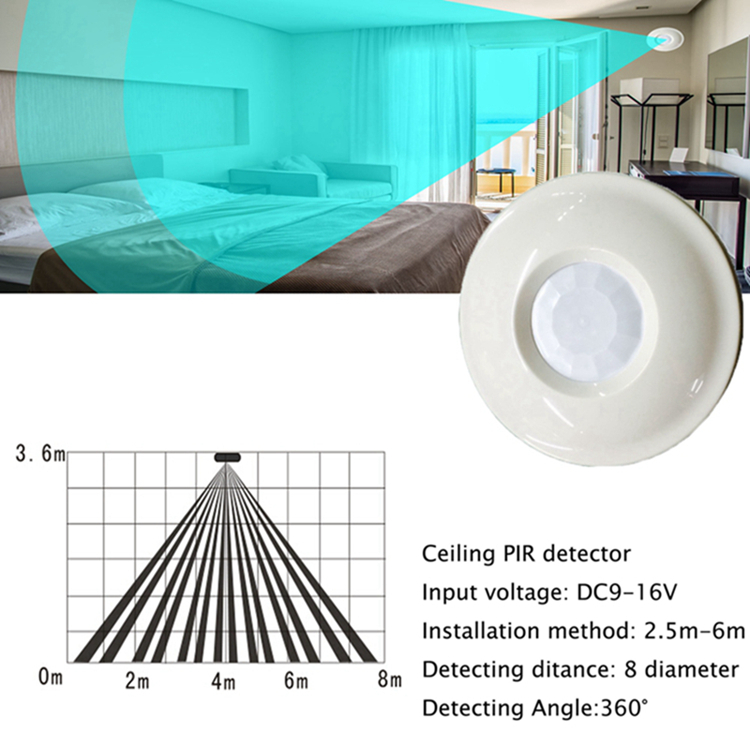

| installation height | about 2.5~6m |
| detecting distance | φ8m |
| detecting angle | 360 degrees |
| alarm output | N.O./ N.C. optional |
| anti-dismantle switch | N.C. |
| dimension | φ106*36mm |
