Main features:
1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional
9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5
Technical specification:
|

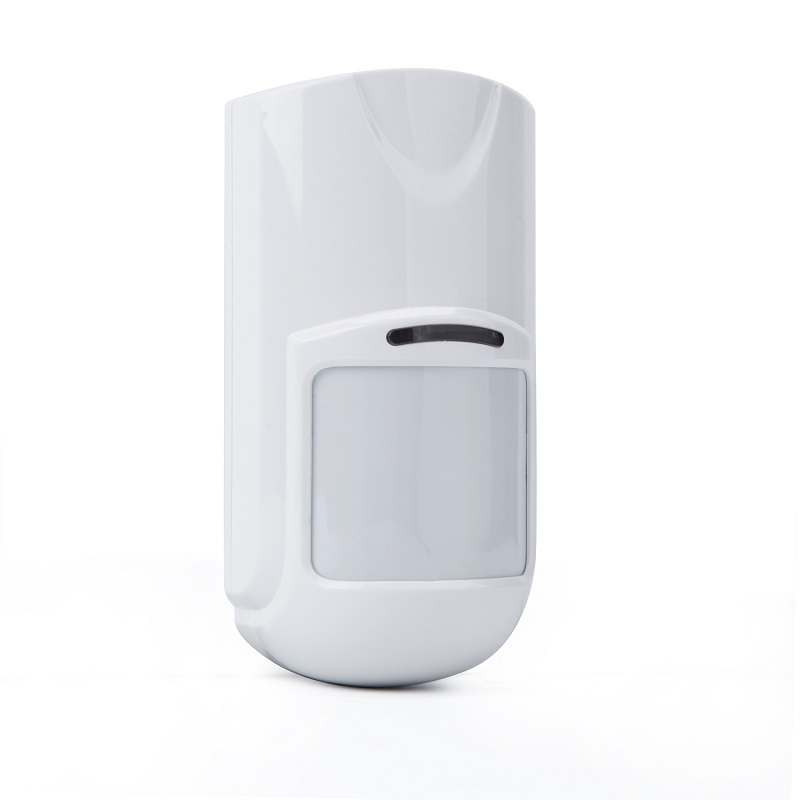

Model NO. |
SR-605W |
|
Operating voltage |
DC9V-24V |
|
Current consumption |
≤18mA |
|
Alarm indicator |
Red LED |
|
Tamper output |
NC, contact DC28V 100mA |
|
Alarm output |
NC/NO optional, contact DC28V 100mA |
|
Alarm time |
0.3m/s – 3m/s |
|
Self-testing time |
60s |
|
Microwave antenna type |
X-Band plane antenna with high frequency GaAs :FET oscillator |
|
Pet immunity |
N/A |
|

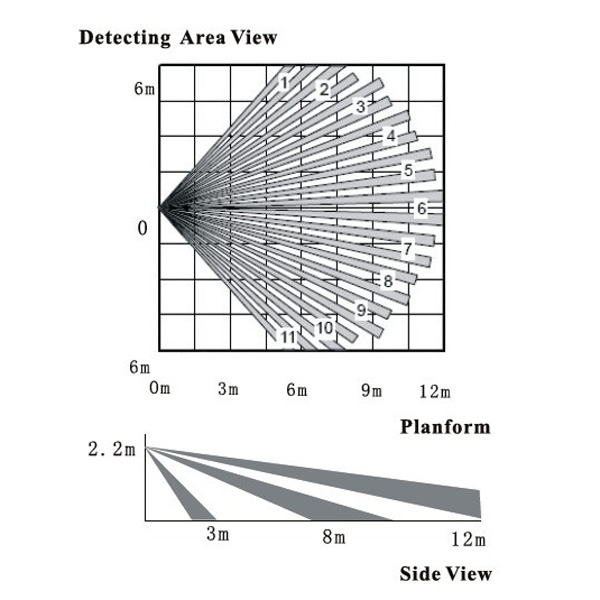

Detecting angle |
110° |
|
Detecting distance |
12m |
|

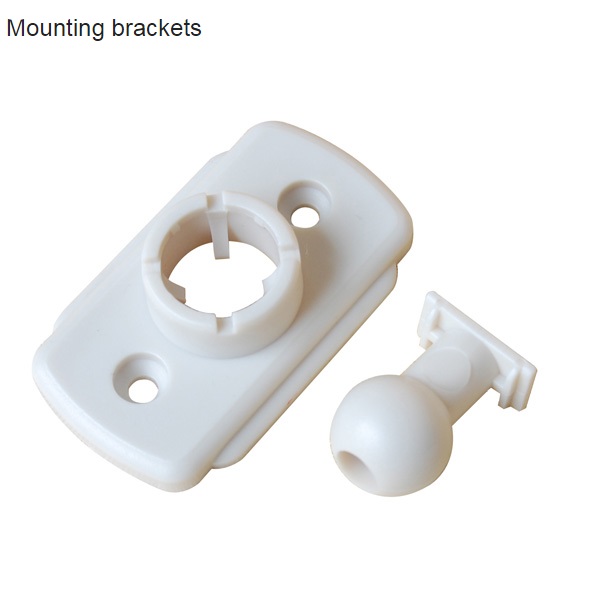

Installation |
Wall or corner mounted |
|
Working environment |
-10℃~+50℃,(≤95%RH No congelation) |
|
Dimension |
123*62*46mm |
