high sensitivity fire alarm heat detector
General Details
Main Features:
| Combination rate-of-rise and fixed temperature alarm |
| MCU processing, eliminate false alarm |
| Low standby current |
| Anti-RFI &Anti-EMI |
| 9-35VDC wide operating voltage range |
| LED flashing visible in 360 degrees direction |
| Power supply non-polar input |

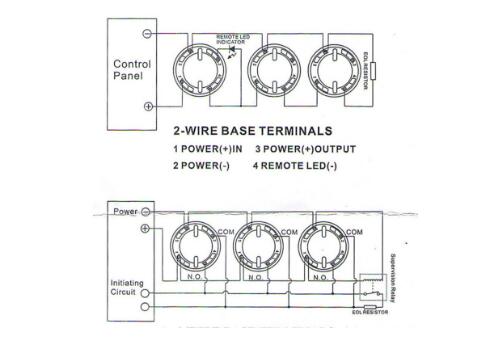

| Remote LED indicator output (2 wire) |
| Rustproof, mothproof, anti-light interference design |
| Execute criterion: GB4716, EN54-5 |
Technical specification:
| Model No. | SR-503-2 |
| Operating voltage | DC 9V-35V |
| Static current | ≤50uA |
| Alarm current | 35mA(12V); 83 mA (24V) |
| Alarm output | Remote LED indicator |
| Alarm temperature | Rate-of-rise alarm: temperature rising rate>8℃ |
| Installation | Ceiling mounted |
| Working environment | -10℃~+50℃, Humidity ≤95%RH |

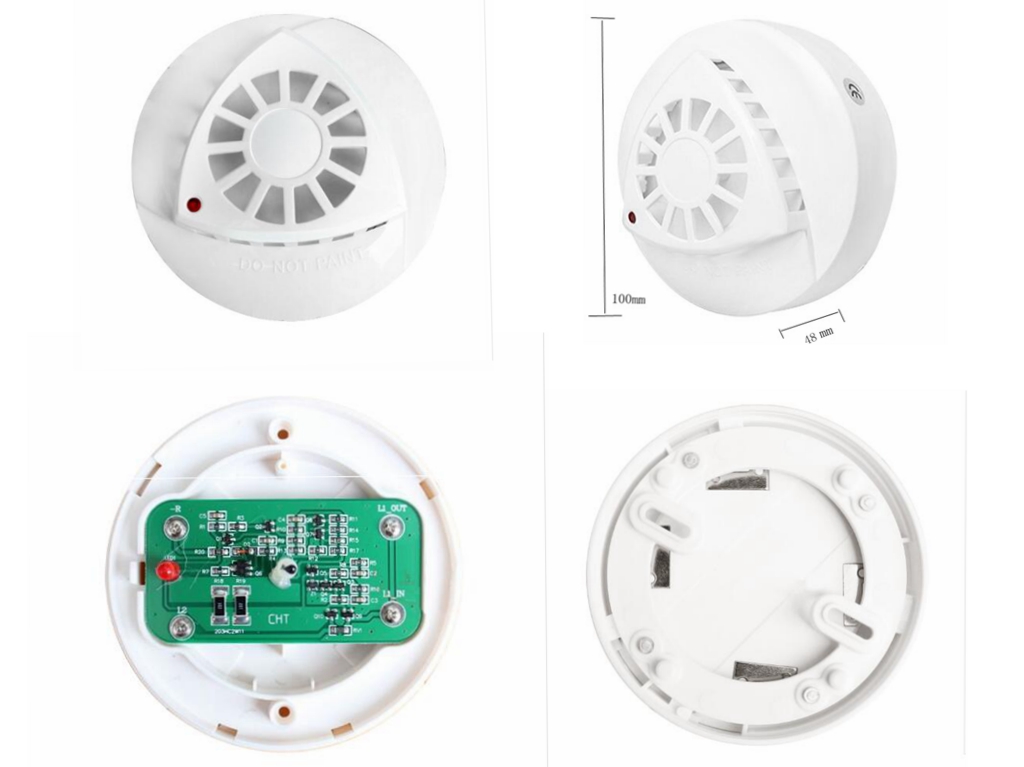

| Dimension | 100*48mm |
SR-504 Heat detector
2 wire; Dual LED indication
