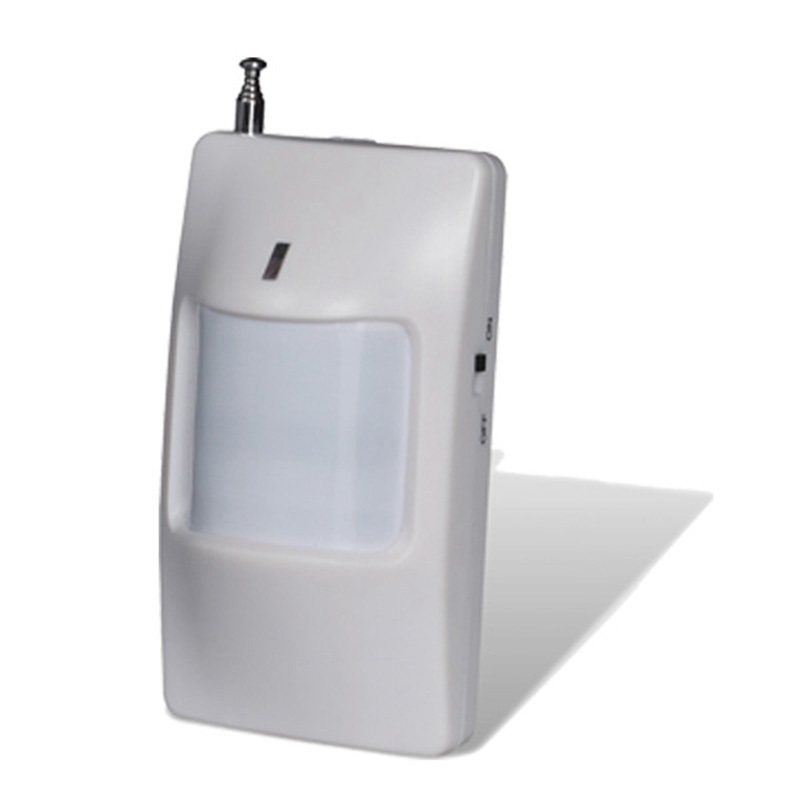

433 MHz Wireless Infrared Detector PIR Motion Sensor

General Details

 Main features:

1. wireless transmitting digital signal

2.low power indication

3.ASIC adopted

4.Automatic temperature compensation

5.Low power consumption, long battery life

6.SMT adopted, anti-RFI & anti-EMI

Technical specification:

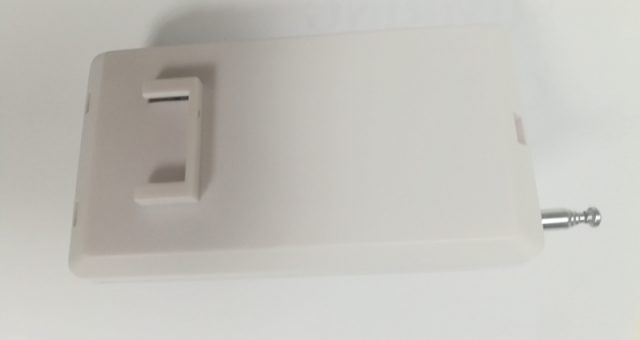

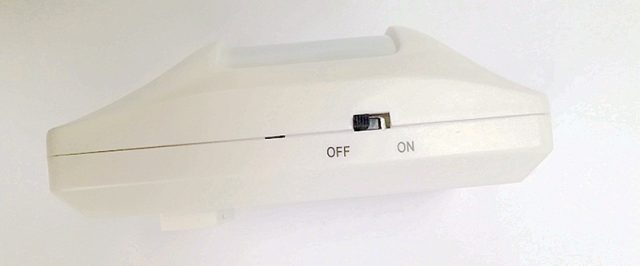

SR-615R Wireless Wide Angle PIR Detector
Operating voltage9V battery
Standby currentless than 25uA
Alarm current less than 15mA
Operating temp-10 to +50 degrees
Installation modewall mounted
Installation heightabout 2m
Detecting distance12m
Detecting angle110 degrees
Transmitting freq315MHz or 433MHz
Transmitting distancemore than 200m (in the open area)
Dimension107*59*45mm
