General Details
Main Features:

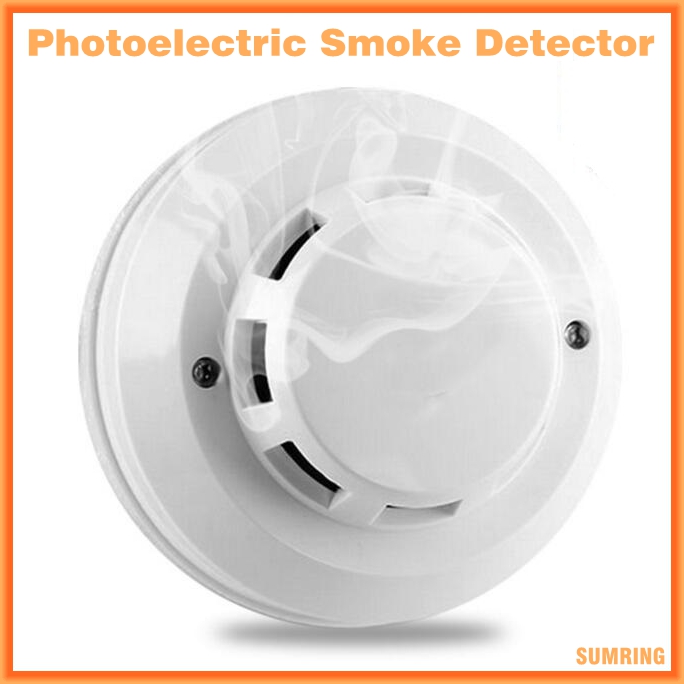

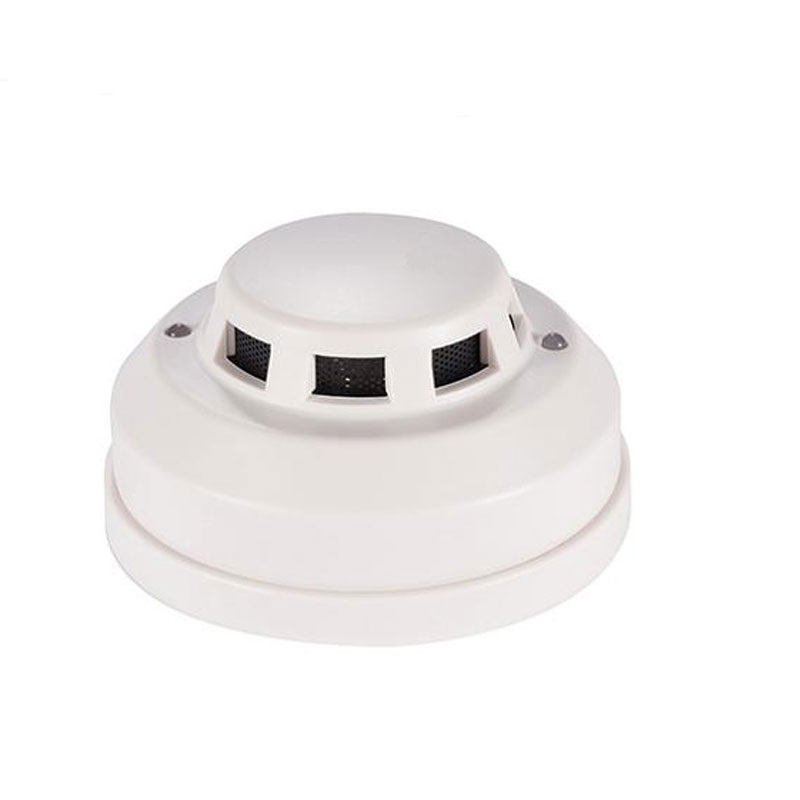

SR-802PC-2: 2-Wire Network Photoelectric smoke detector
1.Power supply non-polar input
2.Infrared photoelectric sensor
3.MCU processing, eliminate false alarm
4.SMT manufacture technology, high stability
5.Dustproof, mothproof, anti-light interference design
6.Stainless steel shield, anti-RFI(20V/m-1GHz)
 7.Execute criterion:UL268, GB4715, EN54-7

Technological details
| Model No. | SR-802PC-2 |
| Operating voltage | DC9~35V |
| Static current | 55uA |
| Alarm current | 35mA@DC12V;60mA@DC24V |
| Sensitivity | 0.5dB/m(±0.01dB/M) |
| Alarm output | Remote LED indicator |
| Installation | Ceiling mounted |
| Working environment | -10℃~+50℃(≤95%RH No congelation) |
| Dimension | 104*49mm |
