Main Features:
1.stand alone style
2.Infrared photoelectronic sensor;

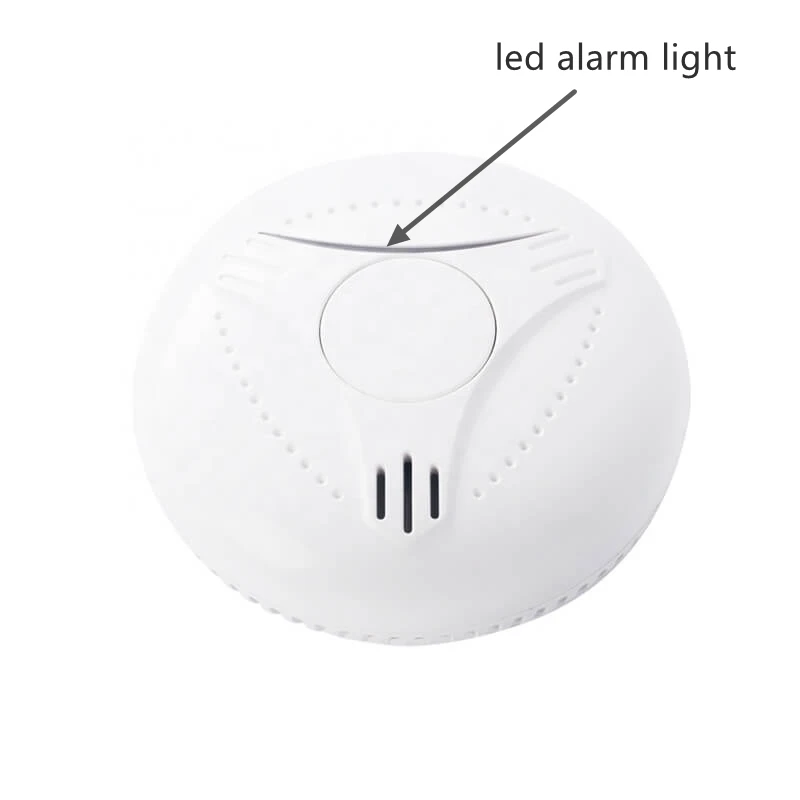

3.buzzer alarm/LED indicating alarm;
4.Latest design
5.with hush button
6.Low voltage threshold
7.Execute Criterion:EN14604:2005/AC:2008
8.Suitable for family homes, commercial shops, restaurants, factories, office buildings
3.buzzer alarm/LED indicating alarm;
4.Latest design
5.with hush button
6.Low voltage threshold
7.Execute Criterion:EN14604:2005/AC:2008
8.Suitable for family homes, commercial shops, restaurants, factories, office buildings
Working Voltage | DC3V built-in lithium battery（SR-851） | |||
Standby current | ＜12uA | |||
Alarm current | ＜35mA | |||
Low voltage threshold | 2.7V | |||
Product lifespan | 10 years | |||
Alarm mode | LED &buzzer | |||
Alarm sound | >85dB/3M | |||
Fire protection grade | V-0 | |||
Material | ABS fireproof material | |||
Installation method | ceiling mounted | |||
Product size | Φ110mm×H42mm | |||
single packing size | 132mm*123mm*50mm | |||
Detector Net weight | 140g | |||
Execute Criterion | EN14604:2005/AC:2008 | |||
Test

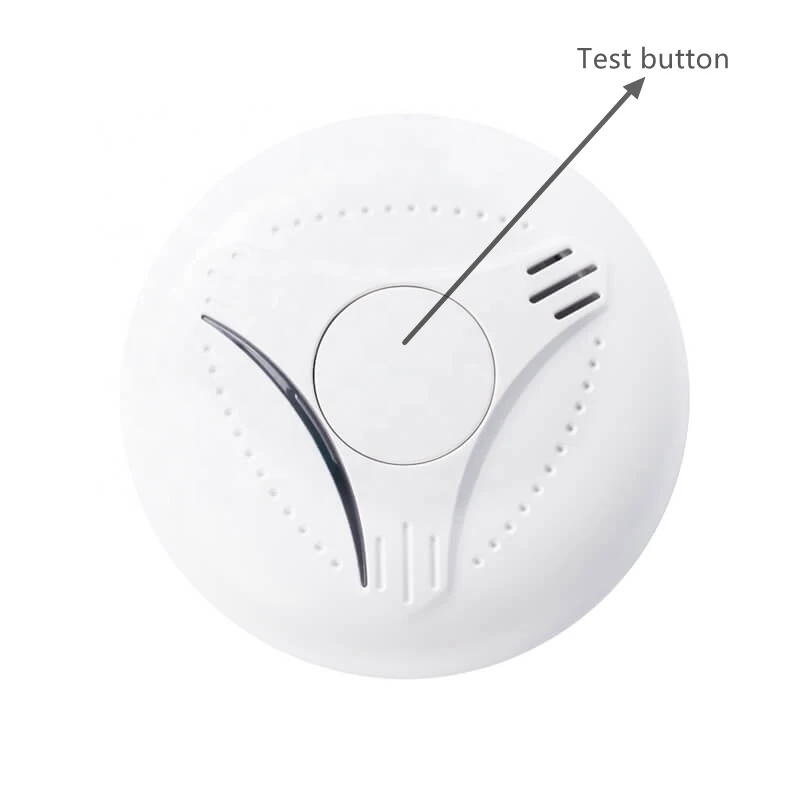

Press and hold the TEST key, the product enters the test state.
When the red light flashes, the buzzer sounds, and the action mode is the same as the alarm mode,it mean normal working ;
When it will flash eight times in red, without buzzing Tweeter, it mean it abnormal working.
Alarm (more than 85db)
When smokes reaching into the smoke chamber,
the Red LED will flash very quickly and “Di Di
Di” alarm sound will be issued by the
buzzer.
